Sanitary Pneumatic (Actuated) Ball Valve, 316 Stainless – Tri-Clamp / Butt Weld, ISO 5211 Mount

Product Description

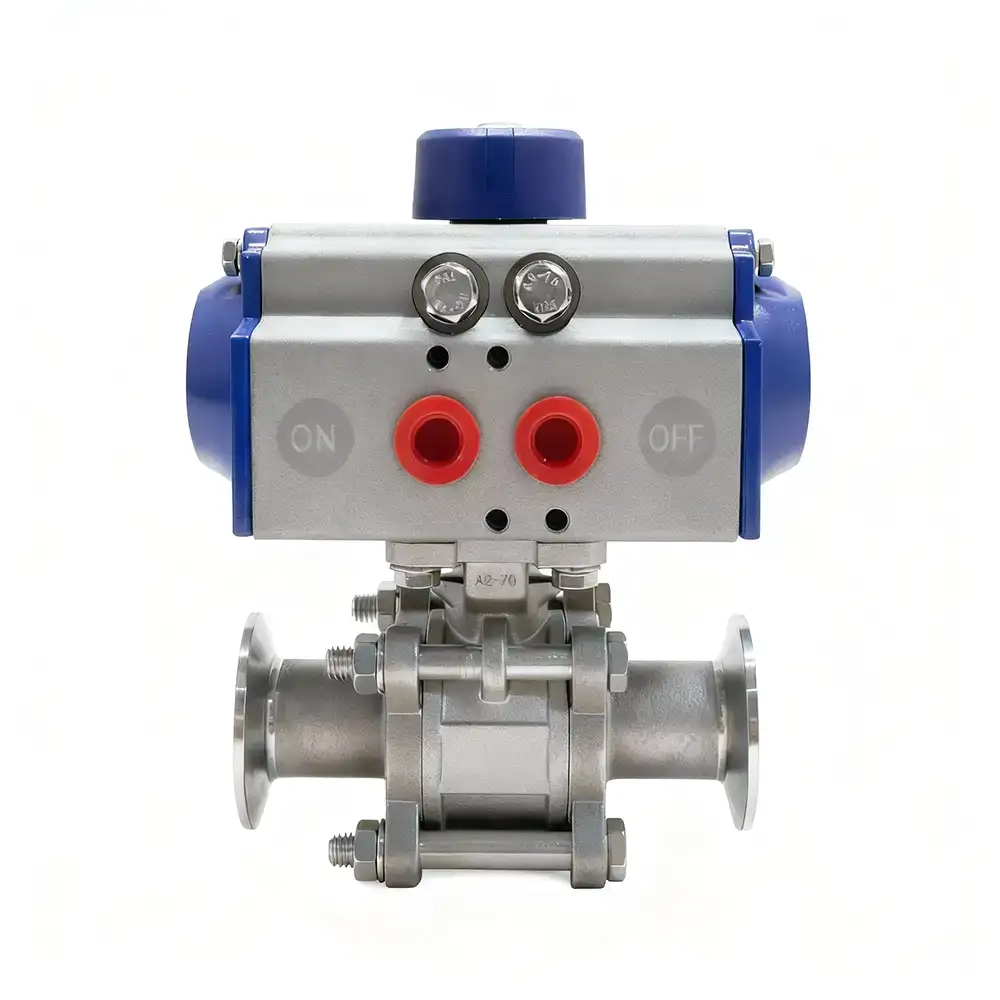

This sanitary pneumatic ball valve pairs our V-3NM high-mount hygienic ball valve with a rack-and-pinion air actuator — double-acting (DA) or spring-return (SR). The valve is cast 316 stainless steel (ASTM A351 CF8M), full port, rated 1000 WOG, with a PTFE seat in fully or semi encapsulated design for dairy, beverage, food and pharmaceutical lines with automated cleaning cycles.

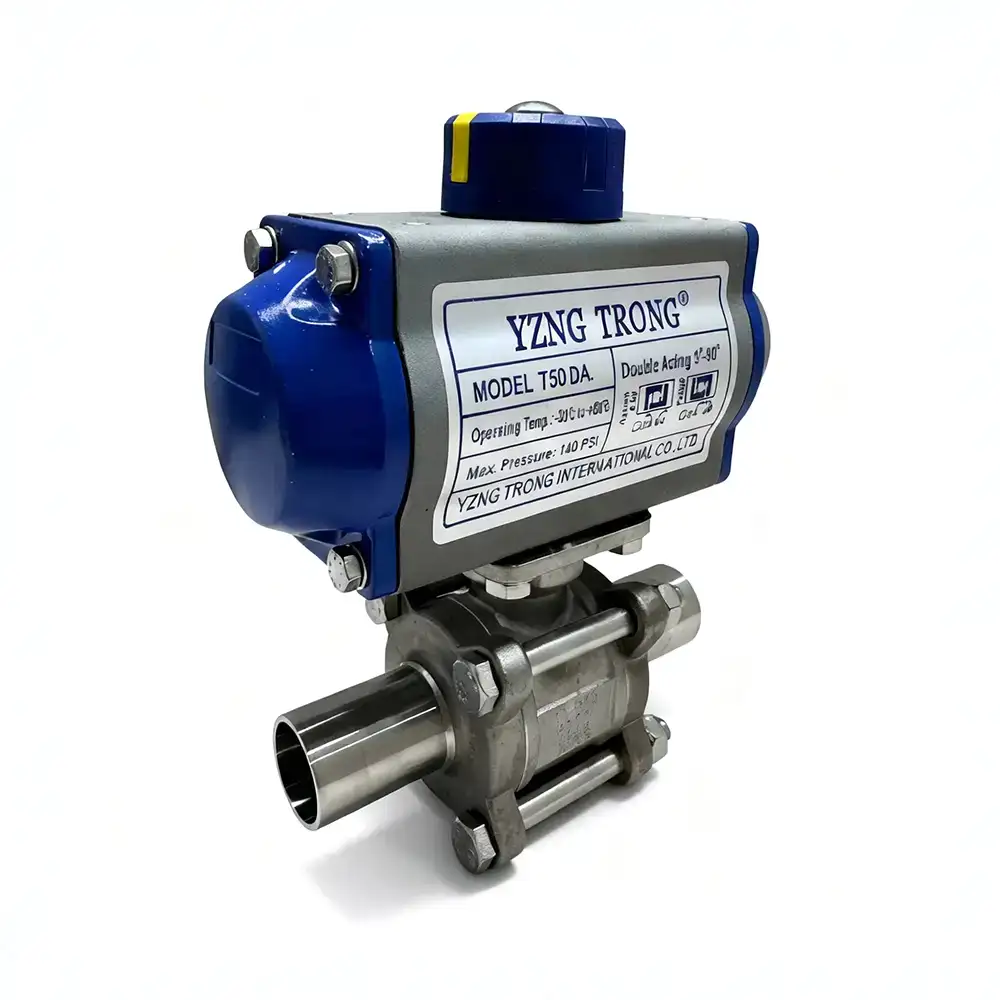

The ISO 5211 high-platform pad means the actuator bolts straight onto the valve — no bracket, no coupling to fabricate. Two end styles cover both ways hygienic lines are built: Tri-Clamp ferrules (V-3NM) or extended OD-tube butt-weld ends (V-3NM-L3). Prefer a hand lever? See the manual sanitary ball valve; for industrial threaded lines, the 3-piece air actuated ball valve; or browse all sanitary ball valves (Tri-Clamp).

Double-Acting or Spring-Return?

Valve Specifications

Actuator Specifications

Materials

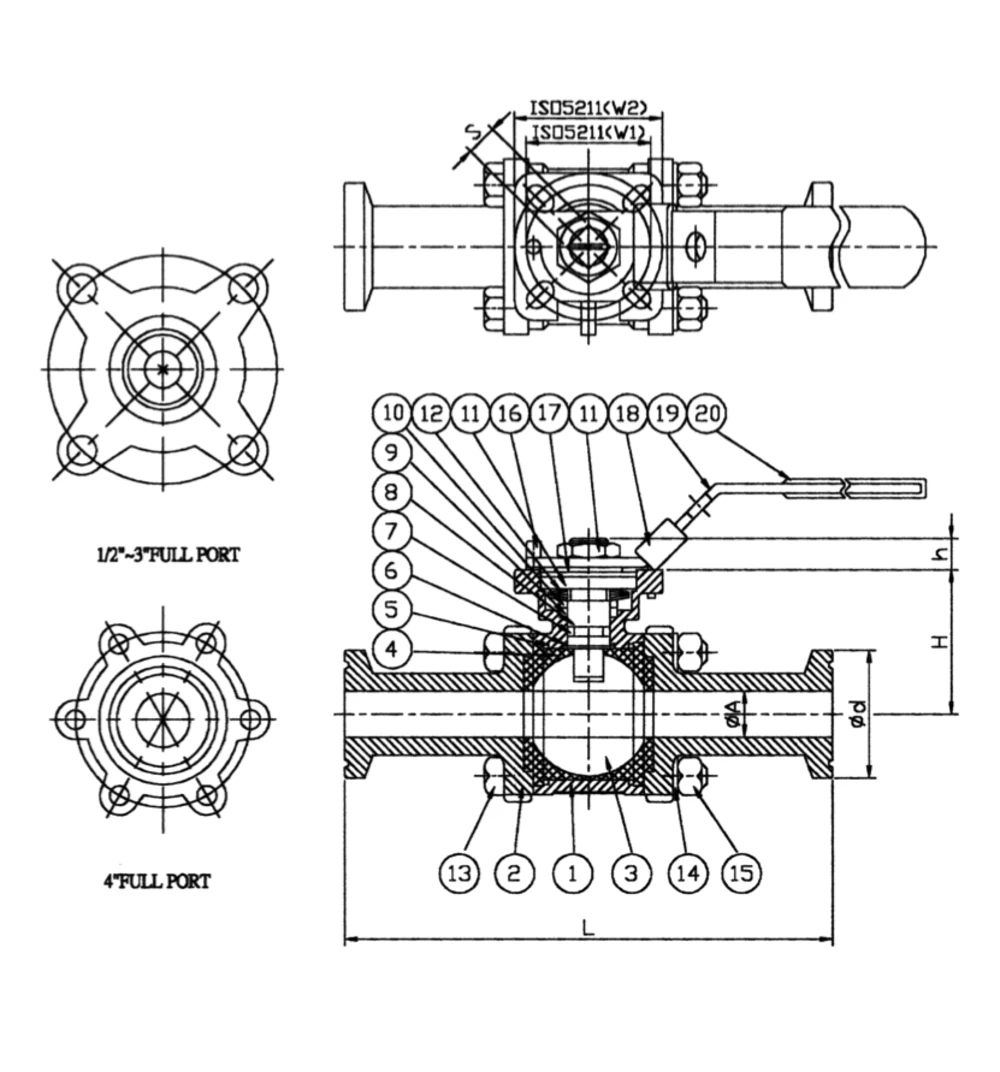

Valve materials per the V-3NM dimension sheet, matching the numbered circles ①–⑳ in the drawing below. On the pneumatic build, the actuator mounts on the ISO 5211 pad.

Dimensions (mm)

L, H and bore ØA are identical for both models; only the end differs — clamp ferrule O.D. on the V-3NM, tube O.D. on the V-3NM-L3. Full drawings in the V-3NM and V-3NM-L3 dimension sheets (PDF).

Application Fields & Locations

• Dairy & beverage: automated on/off duty on milk, juice and soft-drink process lines.
• Breweries & bottling: valve sequencing on transfer, filling and rinse circuits.
• Food processing: product lines with automated cleaning cycles, where the full-port bore leaves nowhere for residue to sit.
• Pharmaceutical & biotech: welded sterile loops using the extended butt-weld ends.

FAQ

Double-acting or spring-return — which should I choose? Double-acting (DA) uses air for both strokes and stays in its last position if air is lost. Spring-return (SR) uses springs for the return stroke, so on air loss the springs move the valve to its preset open or closed position — specify which when you order.

Can I add a solenoid valve or limit switch? Yes. The actuator accepts a solenoid valve for electrical control, a limit switch box for position feedback, and a positioner for modulating service — tell us your control setup when you request a quote.

Tri-Clamp or butt weld — which ends should I choose? Tri-Clamp (V-3NM) if the line is taken apart and cleaned often — the clamp opens without tools. Extended butt weld (V-3NM-L3) for permanently welded sterile loops — the long ends keep welding heat away from the seals.

What does the high-mount ISO 5211 pad do? It is a raised mounting platform cast into the valve, drilled to ISO 5211 (F03–F10 by size). The actuator bolts straight on — no bracket or custom coupling — and the raised platform keeps the actuator clear of the valve body.

Can I mix Tri-Clamp and butt-weld ends on one order? Yes. Both are available across the 1/2″–4″ range; state the size, connection and actuator type for each line item.

What is the minimum order? No minimum order quantity — we accept orders of any size, including small trial orders. For small orders, freight is arranged and paid by the buyer. Payment is by T/T — 30% on order confirmation, 70% before shipment.
