Vacuum Valves

Stainless steel vacuum valves in 316: manual and pneumatic ball valves with NW/KF quick-flange or ISO-K flange ends, two-piece and three-piece bodies, plus 3-way L-port and T-port versions.

Vacuum lines are unforgiving about seals. Every valve here is 316 stainless with PTFE seats and a vacuum-rated stem seal.

Ends come two ways. NW/KF quick-flange for the smaller sizes, NW16 through NW50, clamped in seconds without tools. ISO-K flange for the larger bores, ISO80 and ISO100.

Operation is a manual quarter-turn handle, or a pneumatic actuator with a double acting (DA) or spring return (SR) cylinder. The three-piece manual valve also takes a high-mount ISO 5211 pad if you want to add an actuator later.

Sizes and flange types vary by model. Check the product page for the one you need.

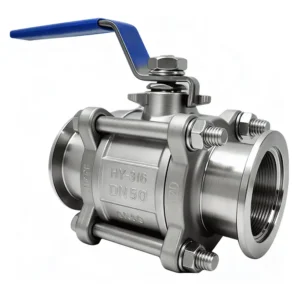

• Manual Vacuum Ball Valve, Three-Piece — 316, NW16 / NW25 / NW40 / NW50, ISO 5211 high-mount option
• Manual Vacuum Ball Valve, Two-Piece — 316, ISO-K flange

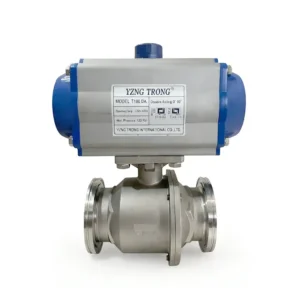

• Pneumatic Vacuum Ball Valve, NW50 — 316, two-piece, ISO-KF clamp ends
• Pneumatic Vacuum Ball Valve, ISO-K — 316, ISO80 or ISO100, DA or SR actuator

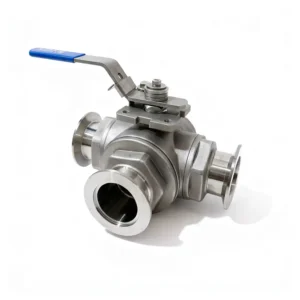

• Manual 3-Way Vacuum Valve — 316, NW40 / NW50, L-port or T-port

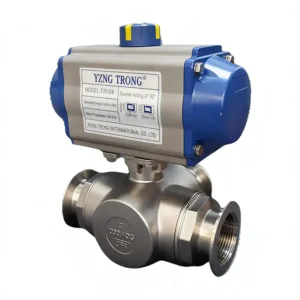

• Pneumatic 3-Way Vacuum Ball Valve — 316, NW/KF flange, L-port or T-port, DA or SR
• KF/NW Vacuum Centering Ring — SS304, KF16 to KF50
