Vacuum Rated Ball Valve, Pneumatic – NW50 KF (2″), ISO-K DN80 / DN100, 316 Two-Piece (V-2VN / V-2BN-ISOK)
Product Summary
A vacuum rated ball valve with a pneumatic actuator: two-piece 316 stainless body, full port, PTFE seats, ISO 5211 direct mount. Choose NW50 (ISO-KF / KF50) clamp ends at 2″ or ISO-K flanges at DN80 (3″) and DN100 (4″). The rack-and-pinion actuator, double acting or spring return, opens and closes the line on a signal. For fore-line and pump isolation, not as a high-vacuum chamber gate.
ISO 9001 · CE · Manufacturer since 1999 · Made in Taiwan

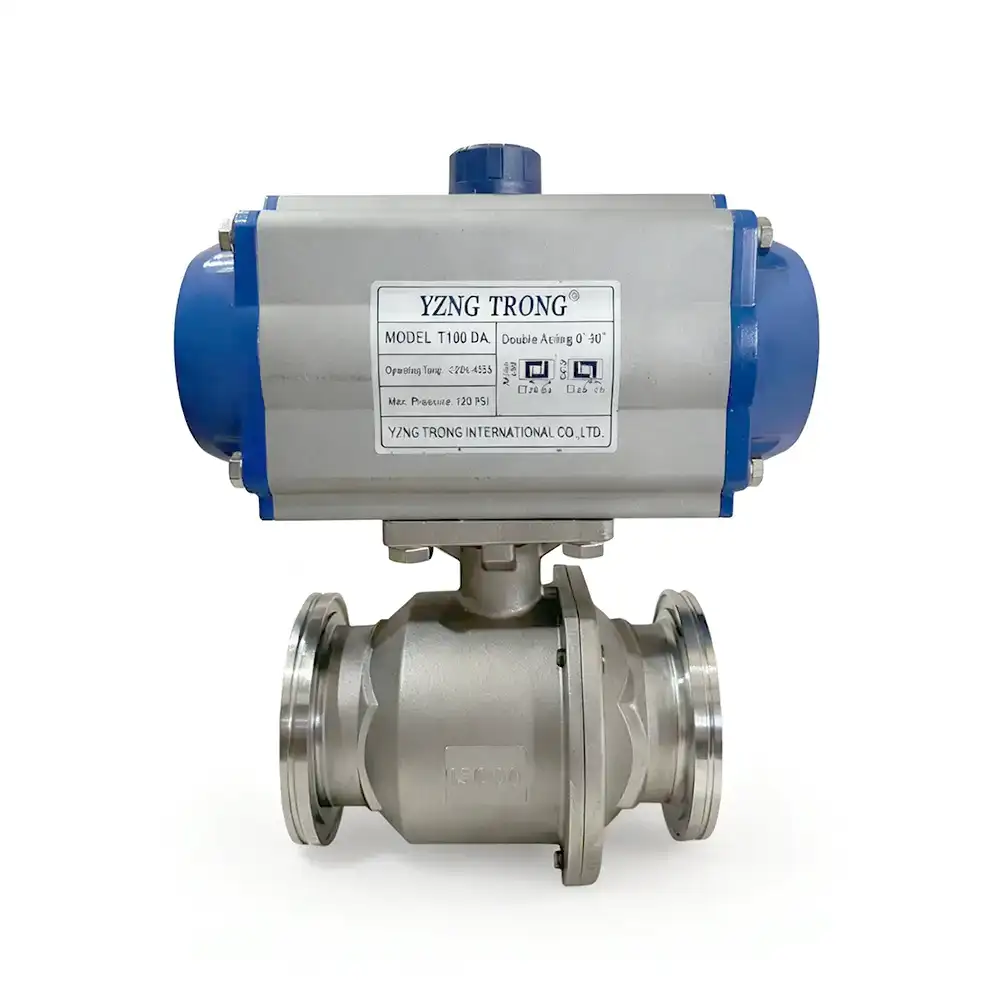

This vacuum rated ball valve is a two-piece 316 stainless steel pneumatic ball valve built for vacuum lines. It comes with two end styles: NW50 (ISO-KF / KF50) clamp flanges at 2″ (model V-2VN), or ISO-K flanges at ISO80 (DN80, 3″) and ISO100 (DN100, 4″) (model V-2BN-ISOK). Both share the same full-port body, PTFE seats and an ISO 5211 pad that takes a rack-and-pinion air actuator, double acting (DA) or spring return (SR), so the valve opens and closes on a signal instead of by hand.
Where This Vacuum Pump Isolation Valve Belongs in the System
A vacuum ball valve has a clear place in a vacuum system: on the pump side. Here is where this valve is used and what it does there.
| Position in the system | What the valve does there |
|---|---|
| Fore-line / roughing line isolation | Between the pump and the chamber, on the roughing or backing line: this is what a vacuum ball valve is for. |
| Vacuum pump isolation | Shutting a pump out of the line so it can be serviced or swapped without venting the whole system. |
| Gauge isolation | Protecting a vacuum gauge during rough-down or venting. |
← Swipe the table to see all columns →
For isolating a pump, a fore-line or a gauge, a ball valve is the straightforward, fast, full-bore answer, and with a pneumatic actuator it does that on a signal.
Key Technical Specifications

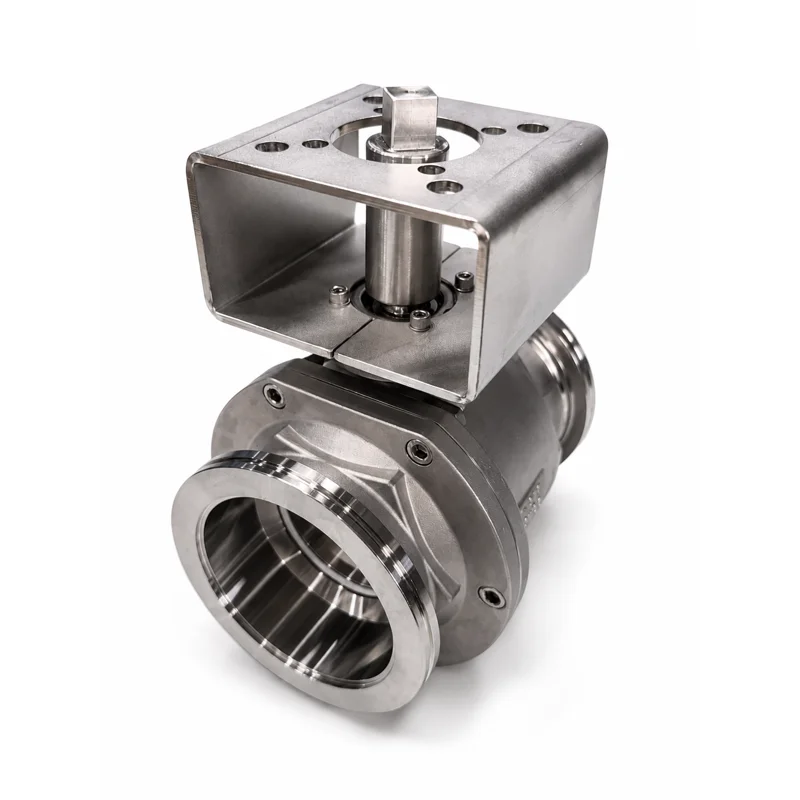

| Item | Specification |
|---|---|
| Type | Two-piece vacuum ball valve, pneumatically actuated (V-2VN / V-2BN-ISOK) |
| Body material | ASTM A351 CF8M (316 stainless steel) |
| Connection | NW50 (ISO-KF / KF50) clamp flange — 2″ (V-2VN) ISO-K vacuum flange — ISO80 (DN80, 3″) or ISO100 (DN100, 4″) (V-2BN-ISOK) |
| Port | Full port on all sizes |
| Seat & seal | PTFE |
| Operating temperature | Valve −20 °C to +180 °C · Actuator −20 °C to +80 °C |
| Actuator | Rack-and-pinion, aluminium alloy body, double acting (DA) or spring return (SR) |
| Air supply | 4 – 8 bar (about 58 – 116 psi) |
| Actuator mounting | ISO 5211 — the actuator bolts straight onto the valve, no bracket or coupling |
| Spring return position | Normally closed or normally open — specify when ordering |
| Options | Solenoid valve, limit switch box, positioner |
| Service | Automated isolation and sequencing on vacuum lines |
Vacuum Rated Valve Design: Why a Pneumatic Ball Valve
- Speed: vacuum sequences are timed. A hand valve makes the operator the bottleneck; an air actuator does not.
- Direct mount: the valve body carries an ISO 5211 pad, so the actuator bolts on with no bracket, no coupling, nothing to align.
- Spring return on air loss: an SR unit moves to the position you specified when the air supply goes. Tell us whether that position is open or closed and we will build it that way.
- Full bore: nothing narrows the line, so conductance is not sacrificed to the valve.
- 316 stainless, PTFE seats: a clean, corrosion-resistant combination for vacuum service.
Pneumatic Vacuum Valve Ends: NW50 KF or ISO-K
NW50 (ISO-KF / KF50), 2″ — V-2VN. The KF clamp flange seals with a single clamp and a centring ring, no bolts, so the valve connects straight into a standard KF line and opens tool-free for service. The dimension sheet above gives face-to-face length, height to actuator top, flange O.D. and tube O.D.
ISO-K ISO80 (DN80, 3″) and ISO100 (DN100, 4″) — V-2BN-ISOK. The ISO-K flange clamps straight into a standard ISO-K line, no adapter needed, for the larger fore-lines and pump connections where KF sizes run out.
Applications
- Vacuum pump isolation — shutting a pump out of the line for service without venting the system.
- Roughing and backing lines — isolating rotary-vane or scroll pumps from the chamber.
- Freeze-drying systems — isolating the vacuum line between the freeze dryer and its pump.
- Vacuum ovens — shutting off chamber vacuum before the pump is switched off.
- Laboratory vacuum piping — automated on/off on KF and ISO-K lines under PLC control.
Related: the hand-operated version of this valve is our manual vacuum valve; for diverting between two vacuum lines, see the 3-way vacuum ball valve. KF/NW centering rings are here.
FAQ
What flange sizes are available?
NW50 (ISO-KF / KF50) clamp flange at 2″ (V-2VN), and ISO-K in ISO80 (DN80, 3″) and ISO100 (DN100, 4″) (V-2BN-ISOK). Each clamps straight into its standard line — no adapter needed.
What is the difference between the NW50 KF version and the ISO-K version?
The valve, seats, actuator and ISO 5211 mounting are the same. The difference is the flange: KF is a small clamp flange that seals with one clamp and a centring ring, used for the 2″ size; ISO-K is the larger flange standard used for the 3″ and 4″ sizes. Choose by the flange already on your line.
Double acting or spring return — which should I choose?
Double acting uses air to open and air to close, and holds its last position if the air supply is lost. Spring return uses air one way and a spring the other, so it moves to a preset position when air is lost. Tell us whether that position should be open or closed and we will build it that way.
What is the operating temperature range?
Valve −20 °C to +180 °C, set by the PTFE seats. Actuator −20 °C to +80 °C.
Does the actuator need a bracket?
No. The valve body has an ISO 5211 mounting pad, so the actuator bolts straight on — nothing to machine, nothing to align.
Can I add a solenoid valve or limit switch?
Yes. The actuator accepts a solenoid valve for control, a limit switch box for position feedback, and a positioner for modulating service — tell us your control setup when you request a quote.
Is there a minimum order quantity?
No. We have no MOQ. Tell us what you need and we will quote it.
