Nombre del producto
Sanitary Pneumatic Ball Valve – 3-Piece 316, Tri-Clamp or OD-Tube Butt Weld, ISO 5211 High-Mount, DA or SR (V-3NM / V-3NM-L3)
Resumen del producto
A 316 stainless sanitary pneumatic ball valve — the V-3NM high-mount three-piece valve with a rack-and-pinion air actuator, double-acting (DA) or spring-return (SR), air supply 4–8 bar. Full port, 1000 WOG, PTFE seat in fully or semi encapsulated form. Tri-Clamp or extended OD-tube butt-weld ends, sizes 1/2″–4″; the ISO 5211 high-platform pad takes the actuator directly, no bracket needed.
ISO 9001 · CE · Manufacturer since 1999 · Made in Taiwan
Sanitary Pneumatic Ball Valve: 3-Piece 316, Tri-Clamp or Butt Weld

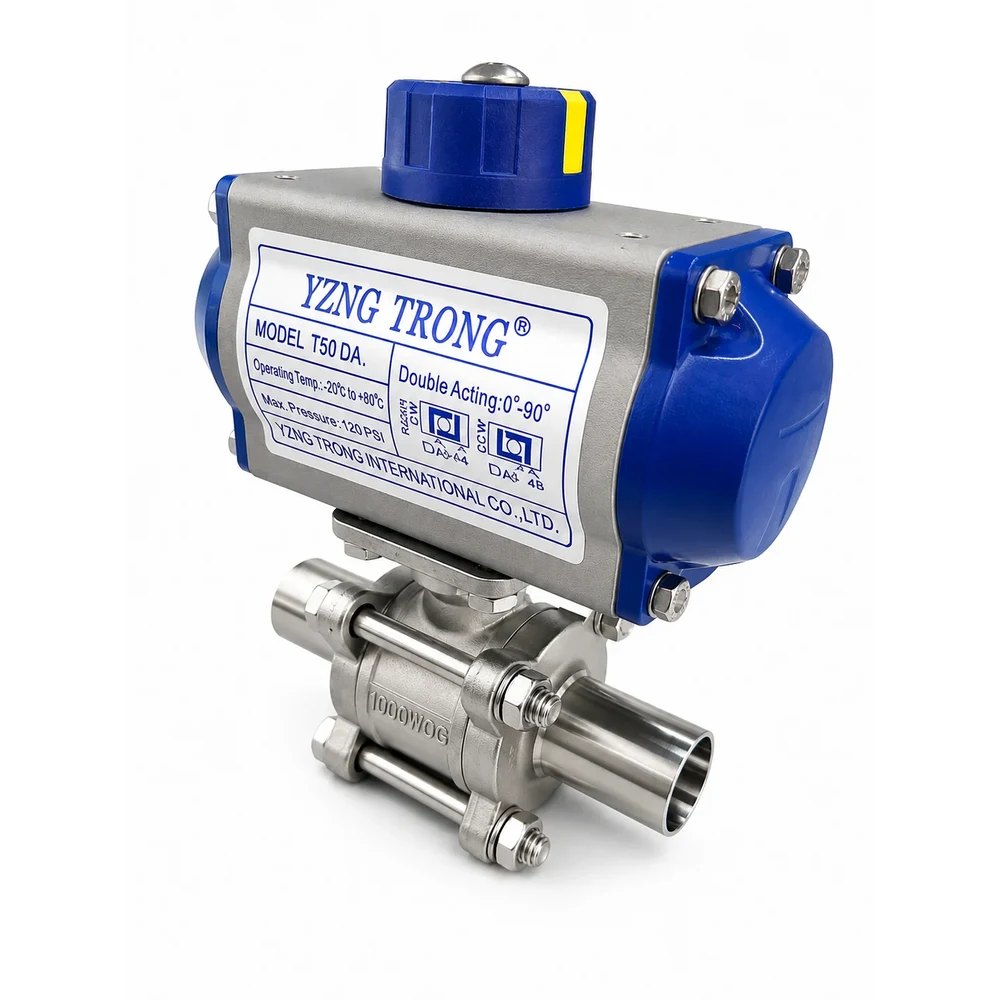

This sanitary pneumatic ball valve is the V-3NM high-mount three-piece valve with a rack-and-pinion air actuator on top — double-acting (DA) or spring-return (SR), running on a 4–8 bar air supply. The valve body and ball are cast 316 stainless steel (ASTM A351 CF8M), full port, rated 1000 WOG, with a PTFE seat in fully or semi encapsulated form. 316 is the stock material and 304 (CF8) is made on request.
Two end styles cover both ways a hygienic line is built: Tri-Clamp ferrules on the V-3NM, or extended OD-tube butt-weld ends on the V-3NM-L3. You will also see this style called a hygienic actuated ball valve, a tri clover pneumatic valve or simply a sanitary pneumatic valve. Prefer a hand lever? See the tri clamp ball valve; for industrial threaded lines, the Válvula de bola de 3 piezas accionada neumáticamente; or browse all sanitary ball valves (Tri-Clamp).
¿De doble efecto o con retorno por resorte?
| De doble efecto (DA) | Retorno por resorte (SR) | |
|---|---|---|
| Cómo se mueve | La presión de aire acciona la válvula tanto para abrirla como para cerrarla | El aire impulsa el movimiento de ida; los resortes impulsan el movimiento de vuelta |
| Si se produce una fuga de aire | Valve se queda donde estaba | Los resortes mueven la válvula a su posición preestablecida de apertura o cierre |
| Ideal para | High-cycle duty — no springs to fatigue | Lines that must land in a defined position when air drops |
Which way the valve should fail is a process question, not a preference: it depends on whether continuing to flow or stopping flow is the larger risk on that line. Tell us the position you want on air loss and we build the actuator to match.
ISO 5211 High-Platform Pad: Actuator Bolts Straight On
The mounting pad is cast into the valve body as a raised platform and drilled to ISO 5211, F03 to F10 depending on size. The actuator bolts directly to it, so there is no bracket to fabricate and no coupling to machine, and the raised platform keeps the actuator clear of the valve body and of the line itself. The top of the actuator carries the standard pads for a solenoid valve, a limit switch box or a positioner.
Tri-Clamp or Butt Weld?
| Tri-Clamp (V-3NM) | Clamp ferrule and gasket. The valve comes out of the line without tools, so it suits take-off points and lines that are opened often. |
| Extended butt weld (V-3NM-L3) | Long OD-tube ends welded into the run. The extra length keeps welding heat away from the PTFE seats, so it suits permanently welded main runs. |
Cavity Filled Ball Valve Seat: Fully or Semi Encapsulated PTFE
The PTFE seat wraps around the ball and fills the body cavity where product could otherwise collect. The fully encapsulated (cavity filled) seat fills the most cavity and is rated −20 to +80 °C; the semi encapsulated seat is rated −20 to +180 °C. Both are available on the V-3NM and the V-3NM-L3 — tell us which one your process needs.
Especificaciones técnicas clave
| Tipo | Sanitary pneumatic ball valve — three-piece, high-mount, air actuated |
| Modelos | V-3NM (Tri-Clamp) / V-3NM-L3 (extended butt weld) |
| Gama de tallas | 1/2″ – 4″ |
| Presión de trabajo | 1000 WOG |
| Puerto | Full port — bore matched to the tube inner diameter |
| Cuerpo y balón | ASTM A351 CF8M — the cast form of 316 stainless steel. 304 (CF8) made on request |
| Caps | AISI 316 |
| Asiento | PTFE — fully encapsulated (cavity filled) or semi encapsulated |
| Temperatura de funcionamiento | −20 to +180 °C with the semi encapsulated seat; −20 to +80 °C with the fully encapsulated seat |
| Junta del vástago | PTFE packing with a Viton O-ring |
| Montaje | ISO 5211 high-platform pad, F03 – F10 by size |
| Conexiones en los extremos | Tri-Clamp ferrule, or extended OD-tube butt weld |
| Dimensions & parts | Listed on the V-3NM y V-3NM-L3 dimension sheets |
Especificaciones del actuador
| Tipo | Rack-and-pinion, aluminium alloy body (stainless steel optional) |
| Interpretación | De doble efecto (DA) o con retorno por resorte (SR) |
| Suministro de aire | 4 – 8 bar (about 58 – 116 psi) |
| Temperatura de funcionamiento | −20 to +80 °C |
| Montaje | ISO 5211 direct mount — no bracket needed on the high-platform pad |
| Opciones | Válvula solenoide, caja de interruptores de límite, posicionador (para servicio modulante) |
Three-Piece Body: Service Without Cutting the Line
The body unbolts into three pieces in place. The bore can be inspected, the internals cleaned and the seats replaced without cutting the valve out of the run and without lifting the actuator off its pad — which matters on a line where the valve is one of many in a sequence.
Aplicaciones
- Automated cleaning cycles on food and beverage lines: The cleaning program drives the valves open and closed on its own schedule, which keeps operators away from hot caustic and steam instead of walking the line turning handles.
- Brewery and beverage transfer sequencing: Where a PLC runs transfer, filling and rinse steps as a sequence, several valves have to move in a defined order with interlocks so two paths never open at once.
- Batch changeover lines: Plants that switch product, flavour or recipe on the same line cycle their valves many times a day. Double-acting actuators have no springs to fatigue, so they suit that duty.
- Lines tied into PLC or HMI control: Once a line is monitored centrally, each valve needs a solenoid to take the signal and a limit switch box to report its position. Both bolt to the standard pads on this actuator.
Preguntas frecuentes
What is a sanitary pneumatic ball valve?
A hygienic ball valve with an air actuator on top instead of a hand lever. The body is 316 stainless steel with a smooth full-port bore and no threads for product to lodge in; the rack-and-pinion actuator opens and closes it from a control signal. Pneumatic control sanitary ball valve, sanitary pneumatic valve and hygienic actuated ball valve all describe the same thing.
Double-acting or spring-return — which should I choose?
Double-acting (DA) uses air for both strokes and stays in its last position if air is lost. Spring-return (SR) uses springs for the return stroke, so on air loss the springs move the valve to its preset open or closed position. Which position is the safe one depends on your process, so specify it when you order.
¿Puedo añadir una válvula solenoide o un interruptor de fin de carrera?
Yes. The actuator accepts a solenoid valve for electrical control, a limit switch box for position feedback, and a positioner for modulating service. Tell us your control setup when you request a quote.
Why a pneumatic actuator rather than an electric one?
A pneumatic actuator has no internal electronics, so it is not exposed to the short-circuit risk that moisture ingress creates for electric units — which matters in a washdown area. It also takes its drive straight from the plant air supply, at 4–8 bar on this actuator.
What does the high-mount ISO 5211 pad do?
It is a raised mounting platform cast into the valve, drilled to ISO 5211 (F03–F10 by size). The actuator bolts straight on — no bracket or custom coupling — and the raised platform keeps the actuator clear of the valve body.
Tri-Clamp or butt weld — which ends should I choose?
Tri-Clamp (V-3NM) if the line is taken apart and cleaned often — the clamp opens without tools. Extended butt weld (V-3NM-L3) for permanently welded runs — the long ends keep welding heat away from the seals.
¿Cuál es la temperatura nominal?
It depends on the seat: −20 to +180 °C with the semi encapsulated PTFE seat, −20 to +80 °C with the fully encapsulated seat. The actuator is rated −20 to +80 °C. Pressure rating is 1000 WOG.
Is 304 stainless available?
316 (CF8M) is the stock material. 304 (CF8) is made on request — state it on the enquiry.
¿Se puede desmontar la válvula para limpiarla?
Yes. The three-piece body unbolts in place, so you can inspect the bore, clean the internals or replace the seats without cutting the valve out of the line or removing the actuator from its pad.
What decides the price of a sanitary pneumatic ball valve?
Size, end style (clamp or extended weld), seat type (fully or semi encapsulated), actuator type (DA or SR), any accessories such as a solenoid or limit switch box, material (316 stock or 304 on request) and quantity. Send line sizes, end style and actuator type and we quote each item.
¿Cuál es el pedido mínimo?
No minimum order quantity — we accept orders of any size, including small trial orders. For small orders, freight is arranged and paid by the buyer.
Política de muestras
Estamos encantados de proporcionar muestras de productos para que los clientes evalúen la calidad o realicen pruebas. El proceso suele comenzar con un presupuesto basado en las especificaciones del cliente.
Si el precio es aceptable, podemos ofrecer muestras gratuitas o con coste, en función del tipo de producto y la disponibilidad.
Los gastos de envío corren a cargo del cliente.
Proceso de pedido
Tras confirmar los requisitos del producto y otros detalles con el cliente, emitiremos una Confirmación de Venta para su aprobación. Una vez confirmada, el cliente deberá abonar un depósito 30% para proceder a la producción.
Una vez finalizada la producción en serie y superada la inspección de la mercancía, el cliente deberá abonar el saldo restante 70% antes de que se organice el envío.
