Product Name
Butterfly Handle Ball Valve — 304 Stainless T-Handle Grip
Product Summary
A ball valve fitted with a 304 stainless butterfly handle — a compact wing grip that turns where a lever has no room to swing. Also called a T handle ball valve.
Made for instrumentation panels, cabinets, and closely spaced manifolds. Handles are supplied fitted to our own ball valves — tell us your valve model when ordering.
ISO 9001 · CE · Manufacturer since 1999 · Made in Taiwan
Product Description

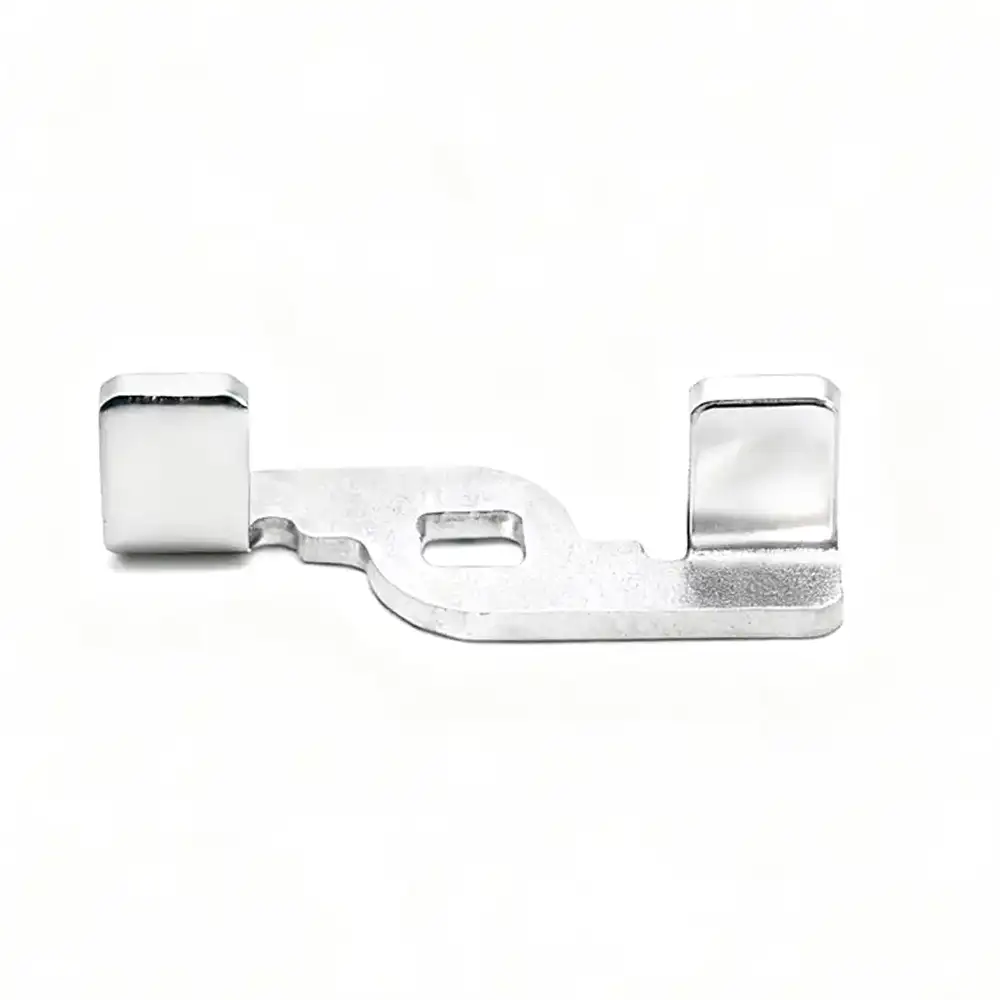

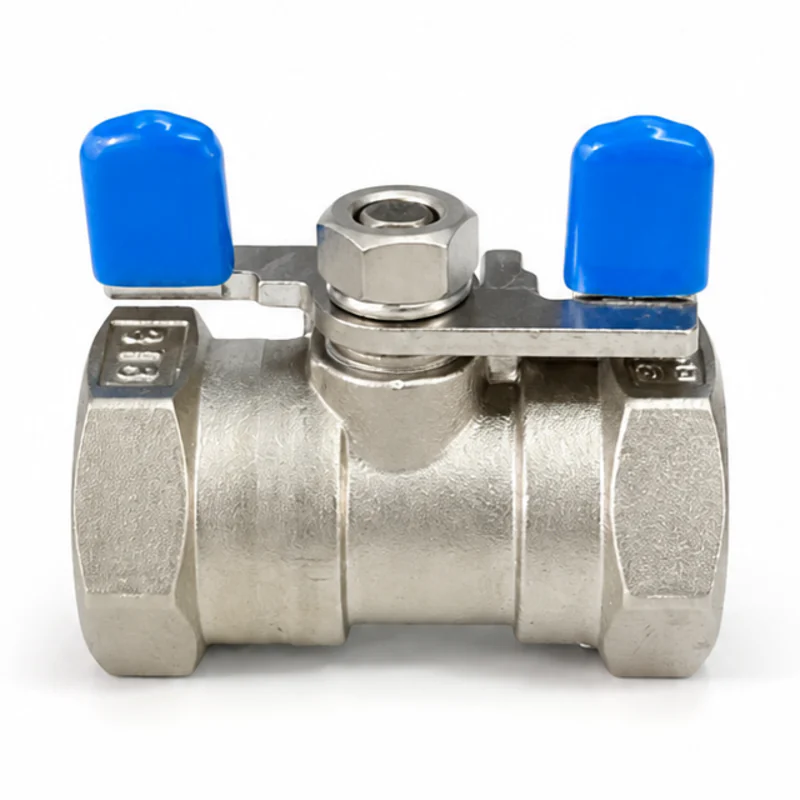

A butterfly handle ball valve is a ball valve fitted with a compact wing grip in place of the usual lever. A lever needs a wide arc of clearance to swing through its 90° travel — clearance that valves in instrumentation panels, cabinets, and closely spaced manifolds simply don’t have. The wing grip sits right on the valve stem: grip the wings, turn, done. The same part is also called a T handle ball valve.
It is made from 304 stainless steel and suits smaller valves (1/4″ to 1″) where high torque leverage is not required.
Key Specifications
| Material | ASTM 304 stainless steel |
|---|---|
| Shape | T-shape / wing (butterfly) grip |
| Typical valve size | 1/4″ – 1″ ball valves, where high torque is not required |
| Fits | Our ball valve series — tell us your valve model when ordering |
| SKU | HB-304 |
Why a T-Handle Instead of a Lever?
- Zero swing radius: the grip rotates in place, so neighboring valves and pipes can sit close together.
- Snag prevention: no protruding lever to catch on clothing, hoses, or passing equipment.
- Clean panel look: a compact, uniform appearance for instrumentation panels.
Where It Is Used
- Instrumentation panels — closely packed small valves.
- Cabinet assemblies — valves inside machinery enclosures.
- Tight piping runs — parallel pipes with minimal gap.
Which Handle Do You Need?
| Handle | Pick it when |
|---|---|
| Butterfly / T-handle (this page) | Valves sit in tight spaces and a swinging lever would not clear. |
| Lockable handle | The valve must be padlocked for lockout/tagout. |
| Graduated handle | You need to throttle flow and lock the valve at a repeatable position. |
| Oval handle | You want a comfortable, glove-friendly grip, or a replacement handle. |
| Extended handle | The valve sits on insulated pipe and the grip has to clear the insulation. |
Frequently Asked Questions
Is a butterfly handle the same as a T-handle?
Yes — two names for the same part. The wing-shaped grip looks like a butterfly and forms a T with the valve stem, so both names are used in the trade. Either way, it is a compact alternative to the standard lever.
Which valves does it fit?
Our own ball valve series, typically 1/4″ to 1″ sizes. The handle is made to match our valve stems, so we do not guarantee fit on other brands’ valves — include your valve model when ordering.
Why choose it over a standard lever?
Space. A lever sweeps a wide arc as it turns; the T-handle rotates in place. In packed panels, manifolds, or enclosures, that means valves can sit much closer together without the handles fouling each other.
Can it handle large valves?
It is intended for smaller valves — typically 1/4″ to 1″ — where high torque leverage is not required. For larger sizes, a standard or extended lever gives you more turning force.
Is it stainless steel?
Yes, ASTM 304 stainless steel.
How do I get a price?
Send us the quantity and the valve model the handle is for. We reply to every inquiry within 24 hours.
Sample Policy
We are happy to provide product samples for customers to evaluate quality or conduct testing. The process typically begins with a quotation based on the customer’s specifications.
If the pricing is acceptable, we can offer samples either free of charge or at a cost depending on the product type and availability.
Shipping fees are borne by the customer.
Order Process
After confirming the product requirements and other details with the customer, we will issue a Sales Confirmation for approval. Once confirmed, the customer is required to pay a 30% deposit to proceed with production.
When mass production is completed and the goods pass inspection, the customer must pay the remaining 70% balance before shipment is arranged.
