Product Name

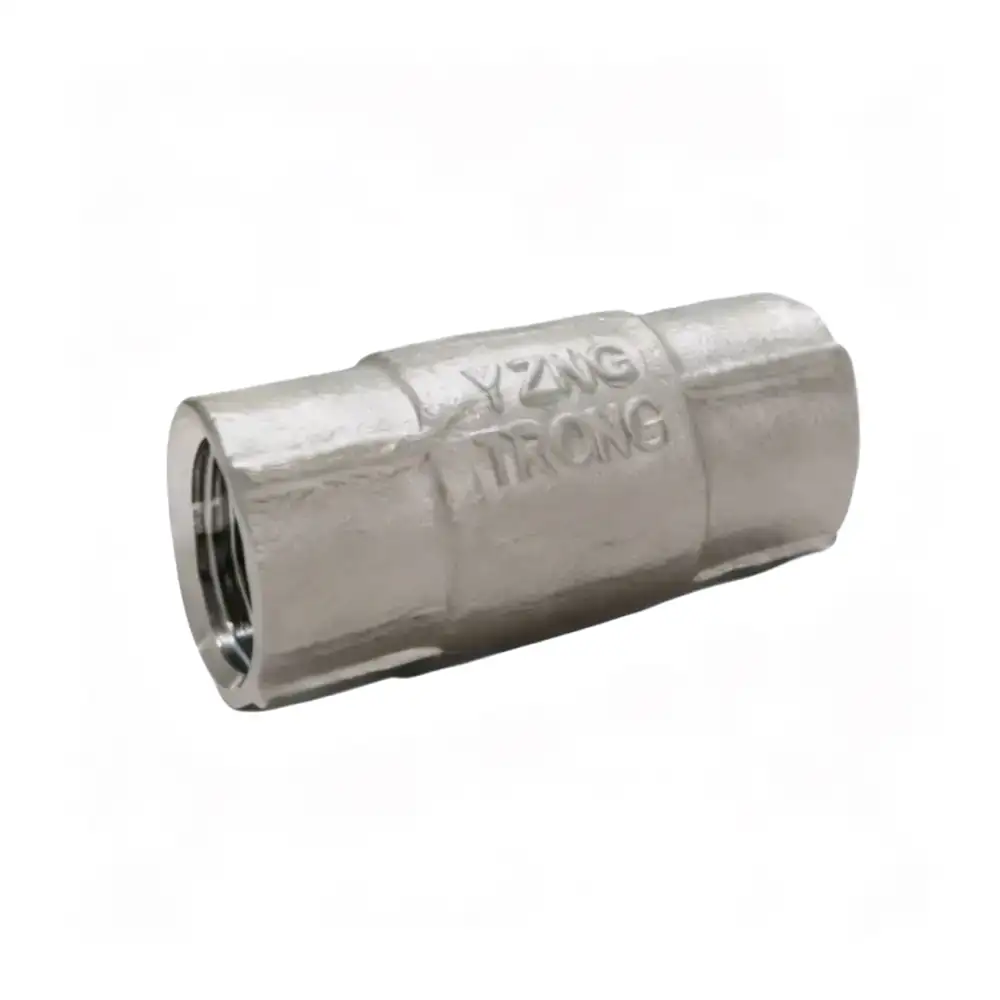

Stainless Steel Silent Check Valve – Spring Loaded, Non-Slam, 304, 1/2″–2″
Product Summary
A stainless steel silent check valve (spring check valve), one-piece, in cast 304 (CF8) — the spring closes the piston before flow reverses, stopping water hammer and protecting pumps and pipes. Female PT threads in stock, sizes 1/2″–2″; NPT and PF threads and a 316 (CF8M) version made to order. The compact one-piece body fits tight spaces.
ISO 9001 · CE · Manufacturer since 1999
Product Description
The SC-1 is a one-piece silent check valve — also sold as a spring check valve or inline check valve. A stainless spring pushes the piston closed before flow fully reverses, so the valve shuts quietly instead of slamming: no water hammer, no shock load on pumps and pipes. The one-piece body is compact enough for tight spaces around pumps and manifolds.
The body, piston and cap are cast 304 stainless steel (CF8), with a CF8M (cast 316) version made to order. Female PT threads are in stock, sizes 1/2″ to 2″; NPT and PF can be made to order. Prefer a hinged-disc valve with lower pressure drop? See the stainless steel swing check valve, or browse all stainless steel check valves.
Silent (Spring) or Swing — Which Check Valve?
| Silent / spring check (this valve) | Swing check | |
|---|---|---|
| Closing action | A spring closes the piston before flow fully reverses (non-slam) | Gravity and reverse flow swing the hinged disc shut |
| Pressure drop | Higher — the spring sits in the flow path | Low — the disc swings clear of the bore |
| Best for | Pump discharge and lines prone to water hammer | General water, oil and gas lines where low pressure drop matters |
Key Technical Specifications

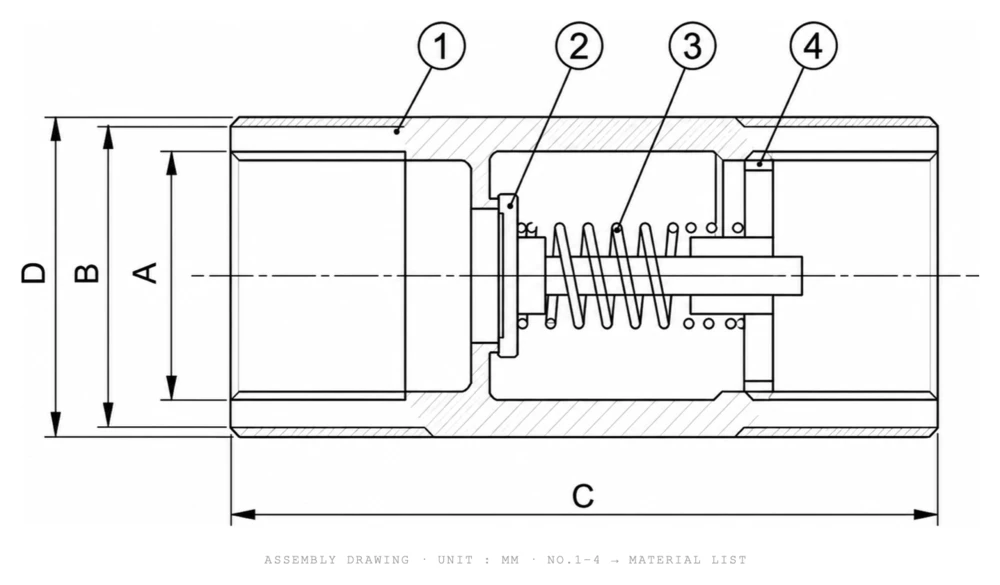

| Type | Silent check valve — one-piece, spring loaded (inline / spring check valve) |
| Model | SC-1 |
| Size range | 1/2″ – 2″ |
| Body, piston & cap | CF8 — the cast form of 304 stainless steel — in stock; CF8M (cast 316) made to order |
| Spring | SS304 (SS316 on the 316 version) |
| End connection | Female PT thread — in stock; NPT and PF made to order |
| Construction | One-piece body, compact face-to-face |
Applications
- Pump discharge lines — the spring closes the valve before reverse flow builds, so there is no water hammer when the pump trips.
- Municipal water supply and booster pump stations — quiet, fast-closing check duty on clean water.
- HVAC and high-rise booster systems — silent closing in mechanical rooms next to occupied space.
- Cooling-water loops — clean water only; not for media with suspended solids.
- Pump skids and tight manifolds — the short one-piece body fits where a swing check will not.
- Vertical and any-orientation piping — the spring closes the valve, so gravity is not needed.
- Small-bore, low-pressure water distribution lines — 1/2″–2″ threaded connections.
- Water treatment plants — clean-water lines and pump discharge, not sludge.
Where slam noise is not a concern and the line is horizontal, the stainless steel swing check valve is the lower-cost option; for 2″–4″ flanged lines, see the stainless steel flanged check valve.
FAQ
Why is it called a silent check valve? Because it closes quietly. The spring pushes the piston shut before flow fully reverses, so there is no rush of backflow to slam the valve — the bang known as water hammer never happens.
Is this the same as a spring check valve or inline check valve? Yes — silent check valve, spring check valve and inline check valve are different names for the same design: a spring-loaded piston inside a straight one-piece body.
Silent or swing check — which one do I need? Choose this silent type for pump discharge and lines prone to water hammer. Choose the swing check valve where low pressure drop matters more — its disc swings fully clear of the bore.
What material is it? Body, piston and cap are cast 304 stainless steel (CF8) with a SS304 spring — in stock. A 316 version (CF8M castings, SS316 spring) is made to order.
Which thread standards are available? Female PT threads are in stock, sizes 1/2″–2″. NPT and PF can be made to order — tell us which standard your piping uses when you request a quote.
What is the minimum order? No minimum order quantity — we accept orders of any size, including small trial orders. For small orders, freight is arranged and paid by the buyer. Payment is by T/T — 30% on order confirmation, 70% before shipment.
Sample Policy
We are happy to provide product samples for customers to evaluate quality or conduct testing. The process typically begins with a quotation based on the customer’s specifications.
If the pricing is acceptable, we can offer samples either free of charge or at a cost depending on the product type and availability.
Shipping fees are borne by the customer.
Order Process
After confirming the product requirements and other details with the customer, we will issue a Sales Confirmation for approval. Once confirmed, the customer is required to pay a 30% deposit to proceed with production.
When mass production is completed and the goods pass inspection, the customer must pay the remaining 70% balance before shipment is arranged.
