Product Name

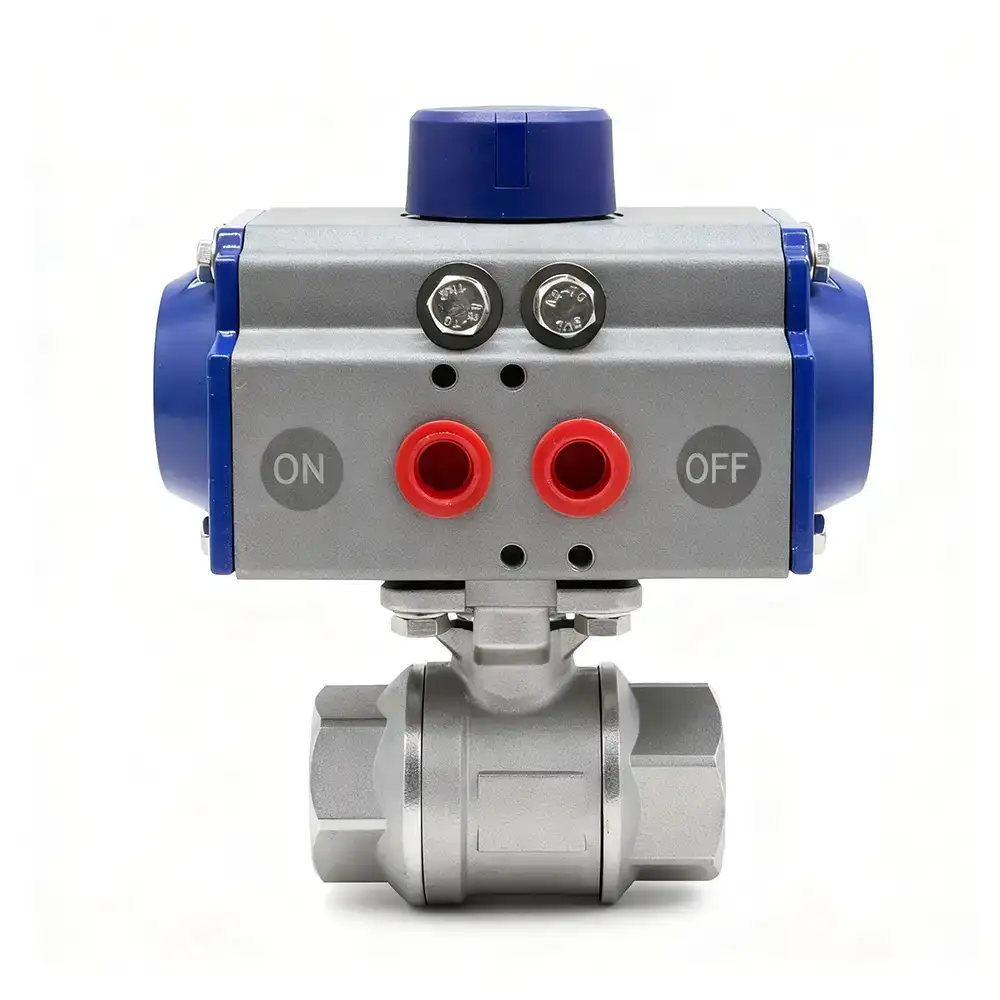

316 Stainless Steel 2-Piece Pneumatic Ball Valve

Name: 316 Stainless Steel 2-Piece Pneumatic Ball Valve
SKU: V-2AM

SKU: V-2AM

SKU V-2AM Category Pneumatic Ball Valves Brand: YZNG TRONG

Product Summary

A 316 stainless steel 2-piece pneumatic ball valve — the V-2AM direct-mount valve with a rack-and-pinion air actuator, double-acting (DA) or spring-return (SR), air supply 4–8 bar. Full port on every size, 1000 WOG, PTFE seats. Female PT threads in stock, sizes 3/8″–4″ (DN10–DN100); NPT and PF made to order. The cast-in ISO 5211 pad takes the actuator directly — no bracket needed.

Request a Quote — reply within 24 hours →

ISO 9001 · CE · Manufacturer since 1999

PDFV-2AMISO 5211 Direct Mount · Dimension SheetDownload ↓

Product Description

This 2-piece pneumatic ball valve pairs our V-2AM direct-mount valve with a rack-and-pinion air actuator — double-acting (DA) or spring-return (SR). The valve body, cap and ball are cast 316 stainless steel (ASTM A351 CF8M), full port on every size, rated 1000 WOG, with PTFE seats. A quarter-turn of the actuator opens or closes the line in under a second.

The ISO 5211 mounting pad is cast into the valve, so the actuator bolts straight on — no bracket, no coupling to fabricate. Female PT threads are in stock, sizes 3/8″ to 4″ (DN10 – DN100); NPT and PF can be made to order. Need more end options like socket weld or butt weld? See the 3-piece air actuated ball valve. Prefer a hand lever? See the manual two-piece ball valve, or browse all pneumatic ball valves.

Double-Acting or Spring-Return?

	Double-acting (DA)	Spring-return (SR)
How it moves	Air pressure drives the valve both open and closed	Air drives one way; springs drive the return stroke
If air is lost	Valve stays where it was	Springs move the valve to its preset open or closed position
Best for	General automated on/off duty	Lines that must land in a defined position when air supply drops

Valve Specifications

Type	2-piece ball valve, pneumatically actuated
Model	V-2AM
Size range	3/8″ – 4″ (DN10 – DN100)
Working pressure	1000 WOG
Port	Full port — every size, bore matched to pipe inside diameter
Body, cap & ball	ASTM A351 CF8M — the cast form of 316 stainless steel
Stem	ASTM A276 Gr. 316
Seat, gasket & packing	PTFE
End connections	Female PT thread — in stock; NPT and PF made to order
Mounting	ISO 5211 direct-mount pad, F03 – F10 by size

Actuator Specifications

Type	Rack-and-pinion, aluminum alloy body
Acting	Double Acting (DA) or Spring Return (SR)
Air supply	4 – 8 bar (about 58 – 116 psi)
Mounting	ISO 5211 direct mount — no bracket needed
Options	Solenoid valve, limit switch box, positioner (for modulating service)

Materials

Valve materials per the V-2AM dimension sheet, matching the numbered circles ①–⑬ in the drawing below. On the pneumatic build, the actuator mounts on the ISO 5211 pad.

No.	Part	Material
1	Body	ASTM A351 Gr. CF8M
2	Cap	ASTM A351 Gr. CF8M
3	Ball	ASTM A351 Gr. CF8M
4	Stem	ASTM A276 Gr. 316
5	Seat	PTFE
6	Gasket	PTFE
7	Thrust washer	PTFE
8	Packing	PTFE
9	Belleville washer	SS410
10	Handle	SS304
11	Spring washer	SS304
12	Handle nut	SS304
13	Handle sleeve	Vinyl grip

Dimensions (mm)

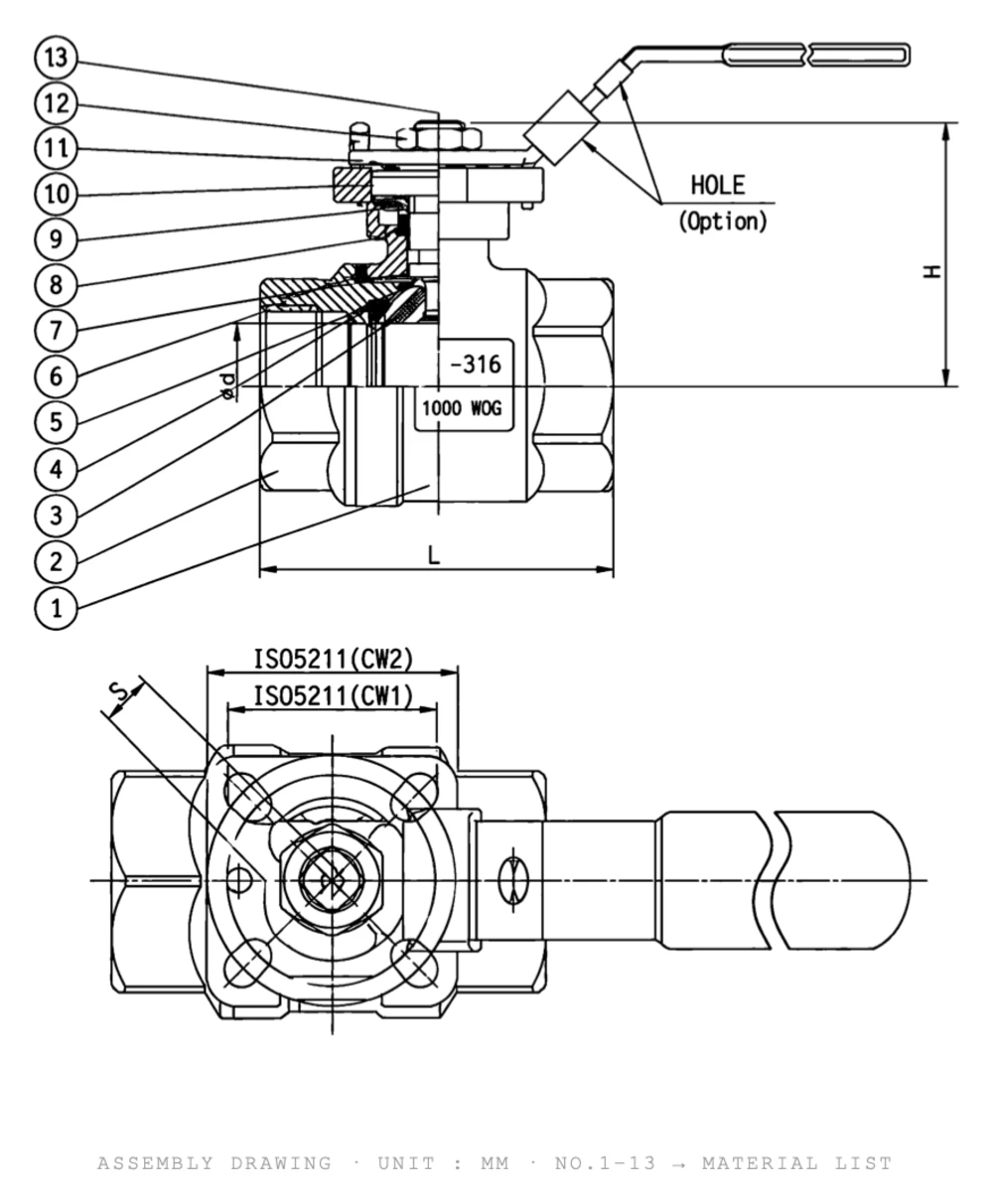

Two-piece direct mount ball valve dimension drawing showing bore D, length L, height H and ISO 5211 pad W1 W2 with numbered parts 1-13 - YZNG TRONG — V-2AM valve body shown. Letters match the columns below; W1/W2 are the ISO 5211 pad dimensions. Numbers ①–⑬ match the materials table above. Unit: mm.

Full drawing in the V-2AM dimension sheet (PDF).

Size	Bore ØD	L	H	S	W1	W2	ISO 5211
3/8″	12.5	58.0	38	9	36	42	F03/F04
1/2″	15.0	60.0	38	9	36	42	F03/F04
3/4″	20.0	70.0	42.4	9	36	42	F03/F04
1″	25.0	82.0	48.5	11	42	50	F04/F05
1-1/4″	32.0	96.0	54	11	42	50	F04/F05
1-1/2″	38.0	112.0	66	14	50	70	F05/F07
2″	50.0	126.0	74	14	50	70	F05/F07
2-1/2″	65.0	155.0	100.5	17	70	102	F07/F10
3″	80.0	170.0	109.8	17	70	102	F07/F10
4″	100.0	216.5	141	17	70	102	F07/F10

Application Fields & Locations

Automated on/off duty: water, air and light chemical lines controlled by PLC or remote signal.
Machine builders: a compact valve-plus-actuator unit that bolts together without brackets, in ten sizes.
Water treatment: valve sequencing across filtration and distribution stages.
Chemical & process lines: remote shut-off where 316 corrosion resistance matters.

FAQ

Double-acting or spring-return — which should I choose? Double-acting (DA) uses air for both strokes and stays in its last position if air is lost. Spring-return (SR) uses springs for the return stroke, so on air loss the springs move the valve to its preset open or closed position — specify which when you order.

Can I add a solenoid valve or limit switch? Yes. The actuator accepts a solenoid valve for electrical control, a limit switch box for position feedback, and a positioner for modulating service — tell us your control setup when you request a quote.

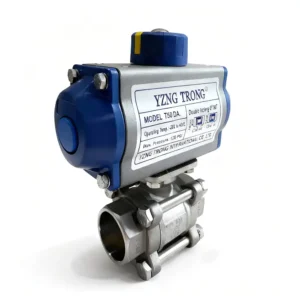

2-piece or 3-piece pneumatic — which should I choose? The 2-piece is the compact, economical choice for threaded lines. Choose the 3-piece air actuated ball valve when you need socket-weld or butt-weld ends, or want to service the seats without cutting the valve out of the line.

Is it full port? Yes — every size. The bore matches the pipe inside diameter (see the Bore ØD column in the dimensions table), so the open valve adds almost no flow restriction.

Which thread standards are available? Female PT threads are in stock, sizes 3/8″–4″. NPT and PF can be made to order — tell us which standard your piping uses when you request a quote.

What is the minimum order? No minimum order quantity — we accept orders of any size, including small trial orders. For small orders, freight is arranged and paid by the buyer. Payment is by T/T — 30% on order confirmation, 70% before shipment.
