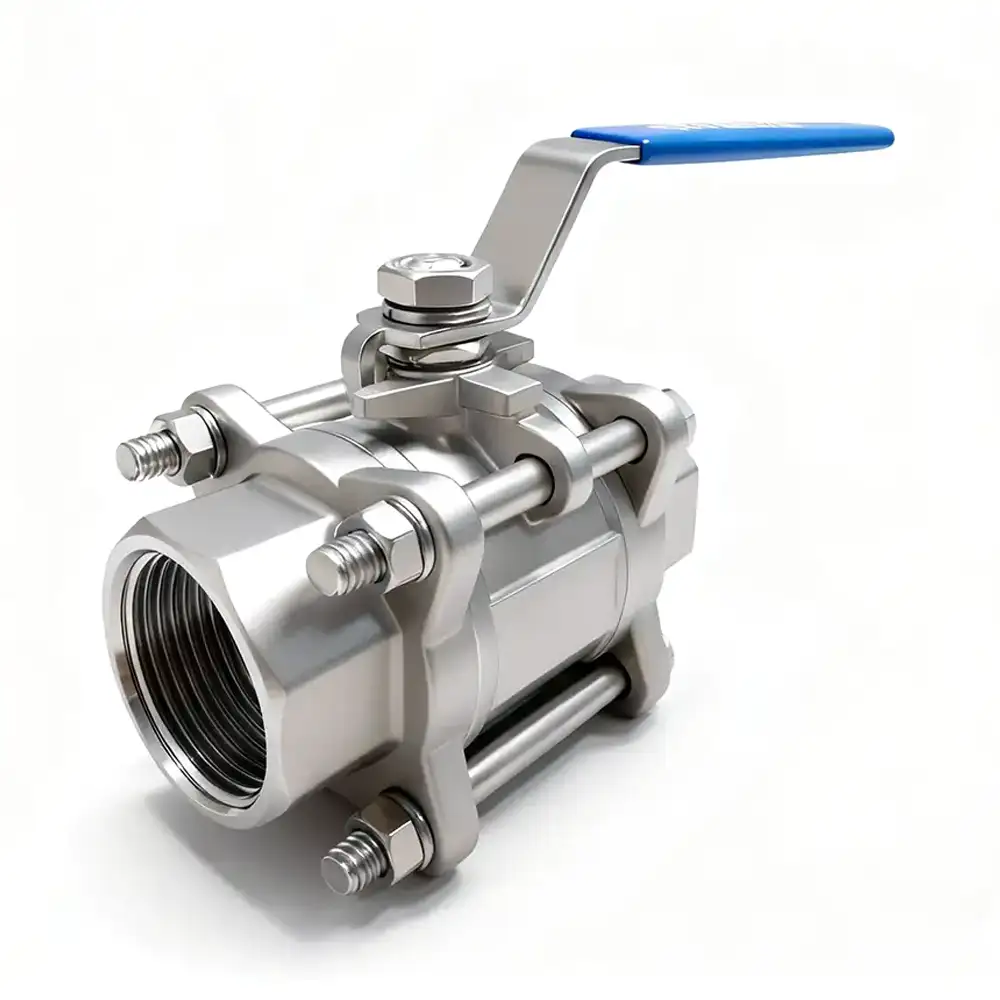

Three-Piece Ball Valve PT / Butt Weld (BW) / Socket Weld (SW), 1000 WOG

Product Name

Three-Piece Ball Valve PT / Butt Weld (BW) / Socket Weld (SW), 1000 WOG

Category

Product Summary

The Maintenance-Friendly Choice for High-Performance Piping.

The V-3A Series Three-Piece Ball Valve is engineered for critical applications requiring regular maintenance or cleaning. Featuring a “swing-out” body design and available in Threaded (PT), Butt Weld (BW), and Socket Weld (SW) connections, this 316 Stainless Steel valve offers unmatched flexibility and longevity for industrial fluid control.

Product Description

The Three-Piece Design is the premium standard for industrial maintenance. Unlike one or two-piece valves, the body of the V-3A can be separated from the pipe connectors (end caps) by removing a few bolts. This allows the main body to “swing out” for cleaning, seal replacement, or inspection without cutting or unscrewing the valve from the pipeline.

Key Technical Specifications:

  • Model: V-3A
  • Body Material: ASTM 316 Stainless Steel
  • Pressure Rating: 1000 WOG
  • Size Range: 1/4″ ~ 4″

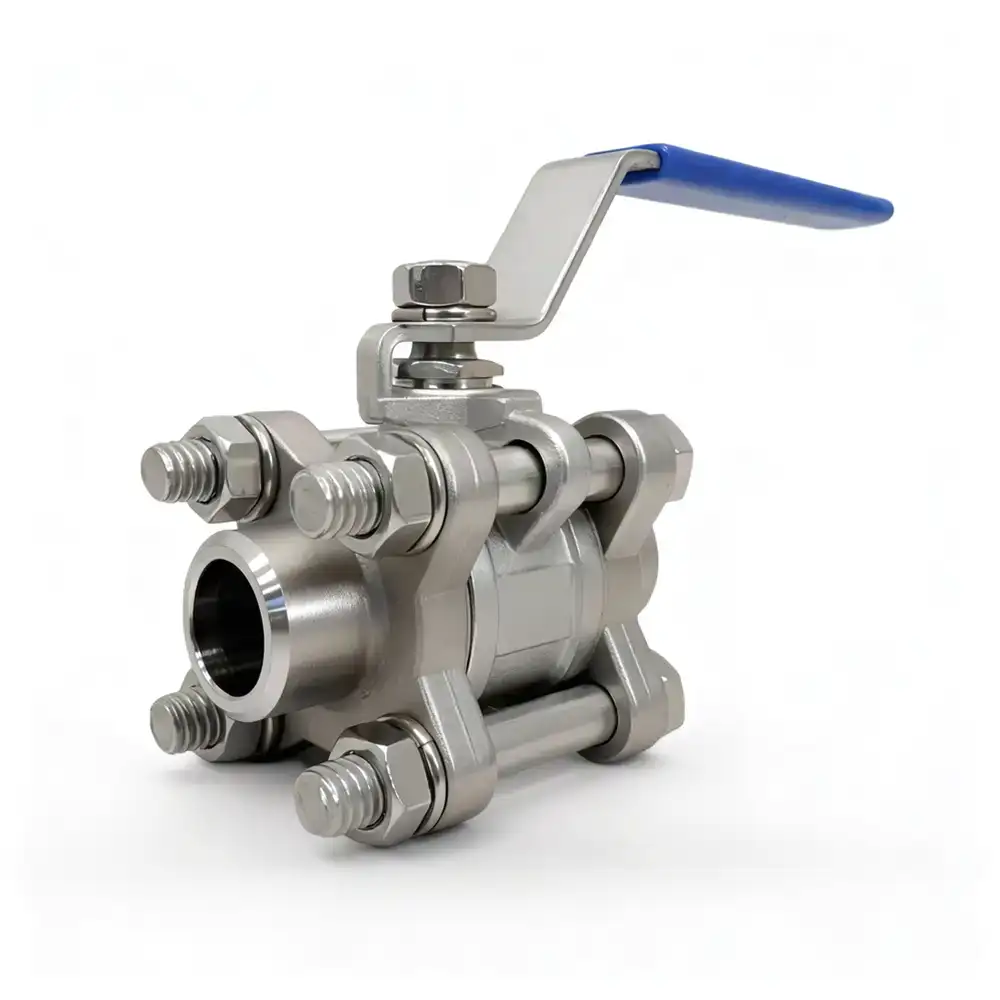

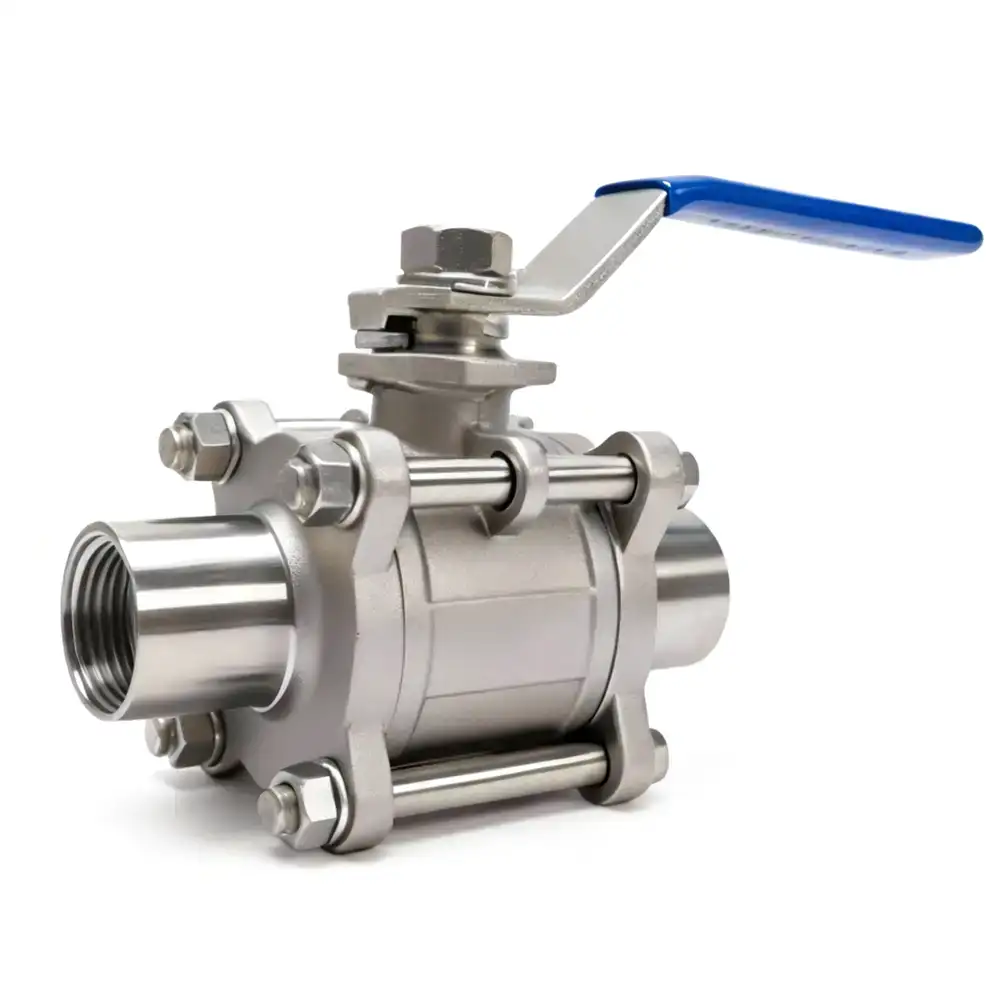

  • Connection Options: Threaded (PT), Butt Weld (BW), Socket Weld (SW)
  • Feature: Swing-out body design for in-line maintenance

Advantages & Benefits

  • Easy In-Line Maintenance: The center body can be removed for servicing while the end caps remain attached to the pipe, drastically reducing downtime and labor costs.
  • Welding Friendly: The 3-piece design allows the center body (containing heat-sensitive seals) to be removed during welding, preventing seal damage from heat transfer.
  • Versatile Connections: Whether your system requires threaded or welded joints for higher security, this single series covers all requirements.
  • High Purity Potential: The easy-clean nature makes it suitable for industries requiring stricter hygiene or regular line clearing.

Application Fields & Locations

  • Petrochemical & Chemical Plants: Lines requiring secure welded connections.
  • Food & Beverage Utility Lines: Steam and water lines where maintenance is frequent.
  • Automotive Manufacturing: Paint and solvent lines.
  • Semiconductor: Support systems requiring reliable, serviceable valves.

Sample Policy

We are happy to provide product samples for customers to evaluate quality or conduct testing. The process typically begins with a quotation based on the customer’s specifications.

If the pricing is acceptable, we can offer samples either free of charge or at a cost depending on the product type and availability.
Shipping fees are borne by the customer.

Order Process

After confirming the product requirements and other details with the customer, we will issue a Sales Confirmation for approval. Once confirmed, the customer is required to pay a 30% deposit to proceed with production.

When mass production is completed and the goods pass inspection, the customer must pay the remaining 70% balance before shipment is arranged.

Related Products

FAQ

Please provide a detailed inquiry sheet including product specifications, materials, quantities, and any special requirements. We will offer a quotation based on your request.

Our quotations are typically based on FOB terms. However, we can also offer CFR, CIF, or other Incoterms upon request.

We operate on a made-to-order basis and do not hold stock.
Our standard MOQ is USD 15,000. Depending on the order composition, we may offer flexibility in certain cases.

By T/T – 30% down payment upon order confirmation, and 70% balance before shipment.

Our general lead time ranges from 30 to 45 days, depending on the order complexity and production schedule.
For more complex orders or during peak seasons, it may extend to 60–90 days.
