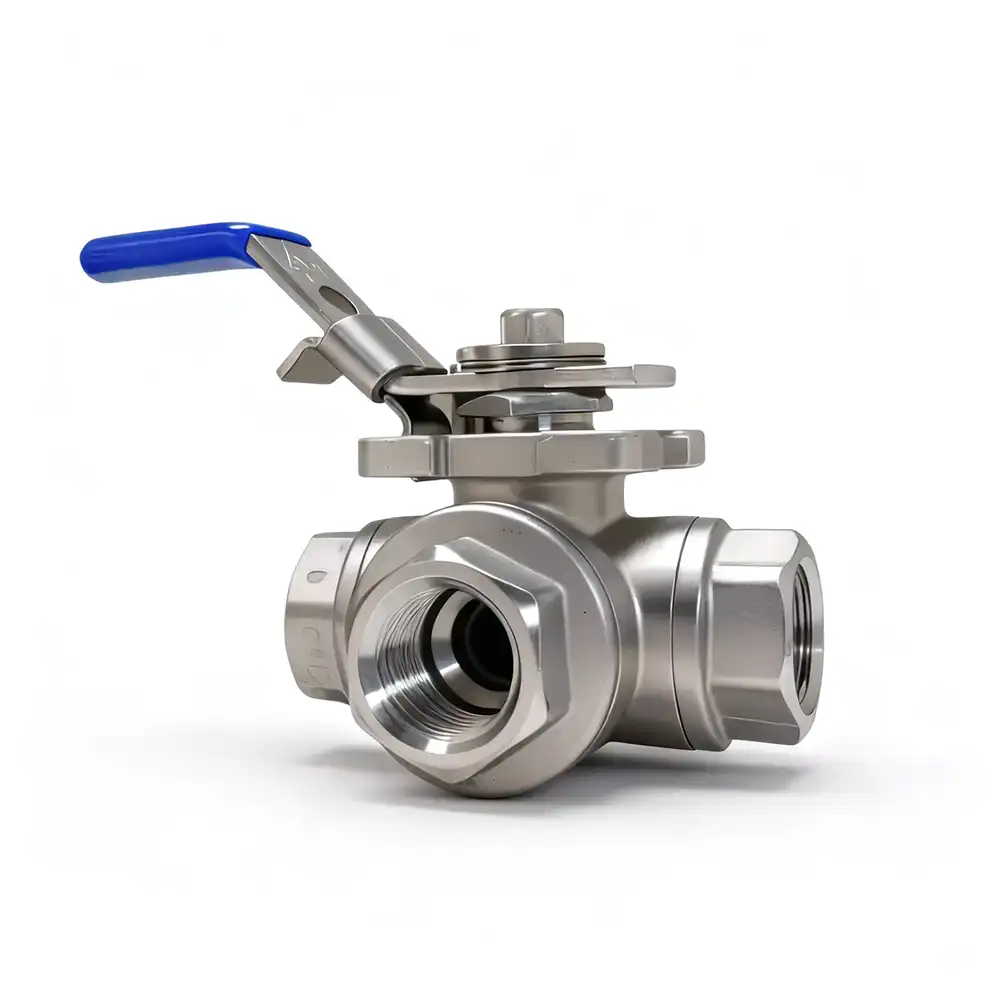

Manual 3-Way Ball Valve, T / L Port, 1000 WOG

Product Name

Manual 3-Way Ball Valve, T / L Port, 1000 WOG

Category

Product Summary

Multi-Directional Flow Control: Divert or Mix with a Single Valve.

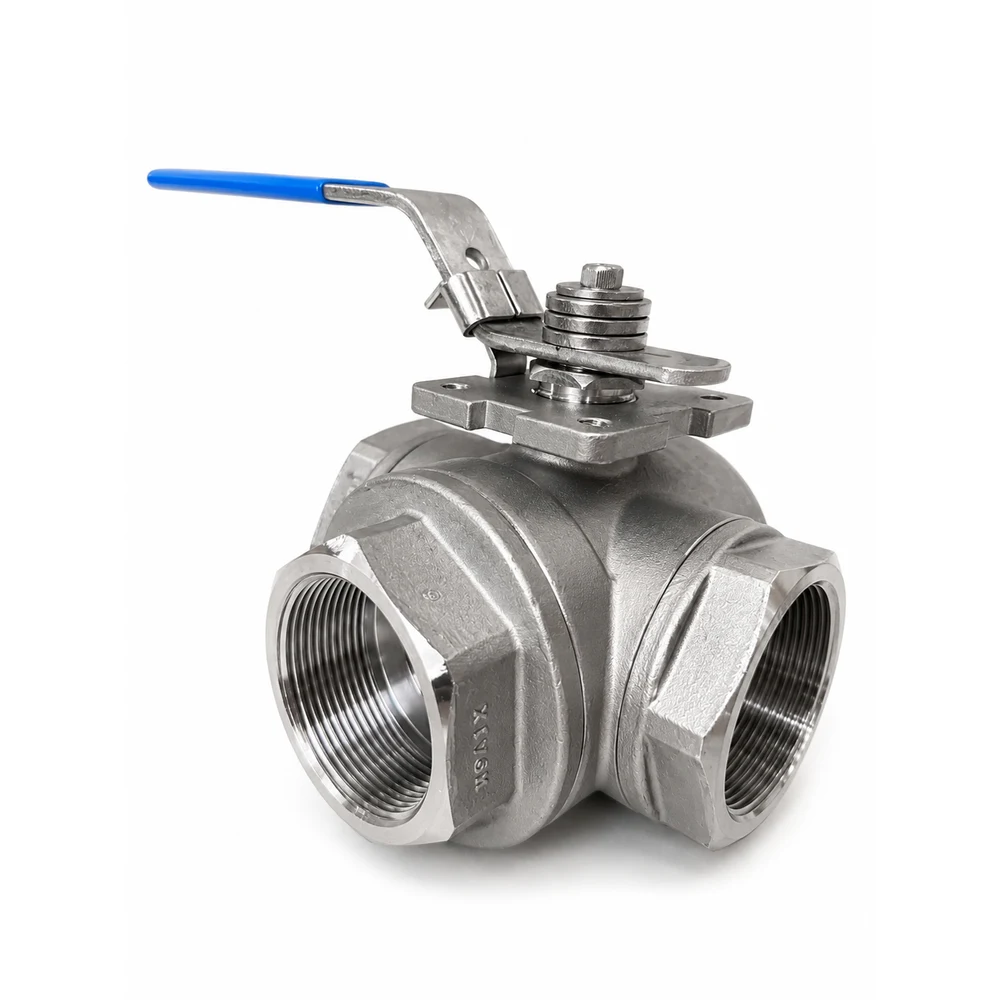

The 3T / 3L Series eliminates the need for complex piping manifolds. This 3-Way Ball Valve (available in T-Port or L-Port configurations) allows operators to divert flow or mix fluids using a single 316 Stainless Steel component. Rated for 1000 WOG, it is a versatile problem-solver for complex process lines.

Product Description

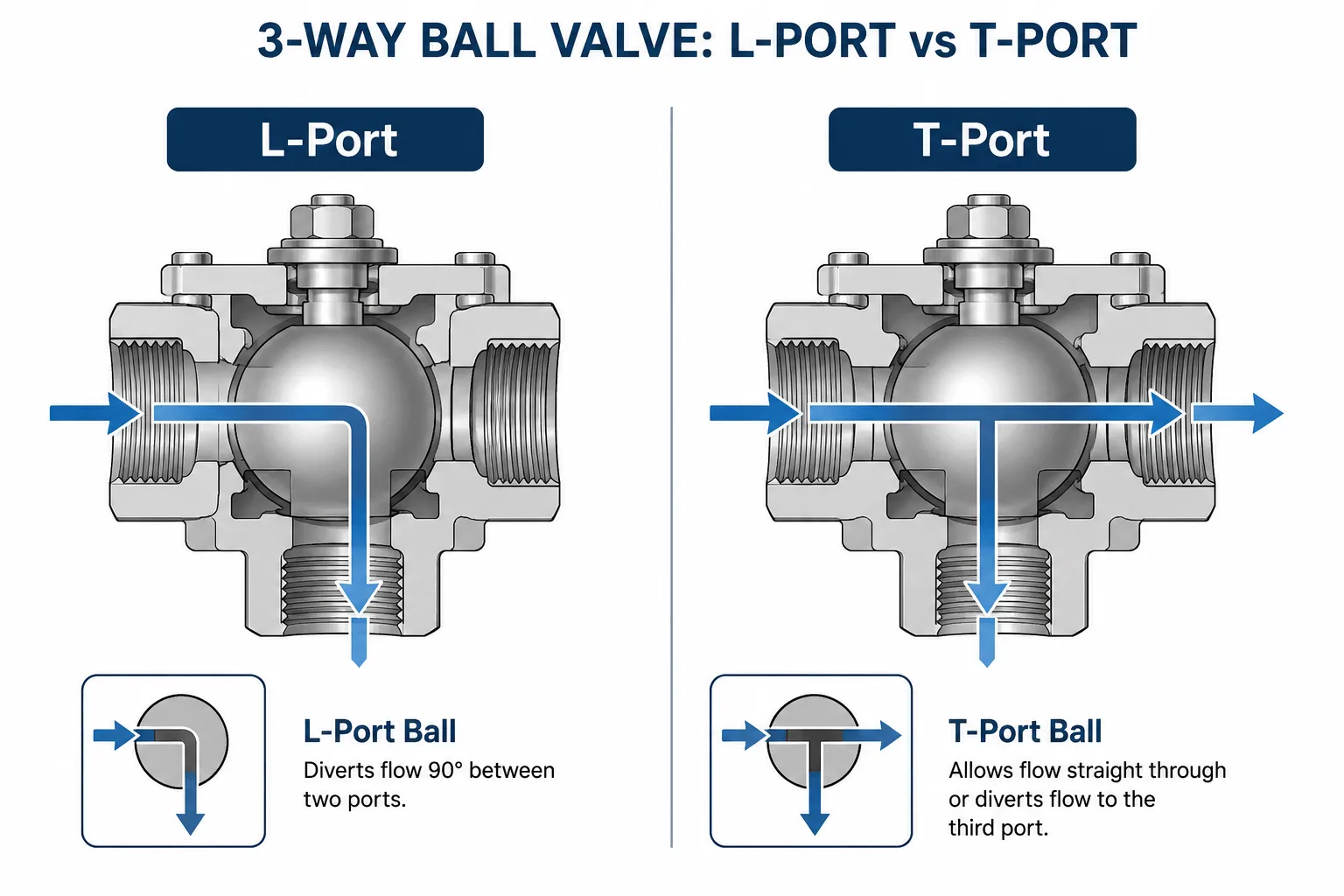

This valve features three ports and a specialized ball configuration.

  • L-Port (Diverter): Designed to direct flow from the bottom port to either the left or right port (or OFF). Ideal for switching between two different tanks or lines.
  • T-Port (Mixer/Diverter): Can connect all three ports simultaneously (mixing) or direct flow in a straight-through or 90-degree pattern.

Key Technical Specifications:

  • Model: 3T (T-Port) / 3L (L-Port)
  • Body Material: ASTM 316 Stainless Steel
  • Pressure Rating: 1000 WOG
  • Size Range: 1/4″ ~ 2″
  • Operation: Manual Handle (360-degree rotation capability depending on stop placement)

Advantages & Benefits

  • System Simplification: Replaces multiple 2-way valves and T-fittings, reducing installation cost and space.
  • Versatile Flow Management: Capable of Mixing, Diverting, or isolating flow depending on the port configuration chosen.
  • High Durability: 1000 WOG rating ensures it handles industrial pressures with ease.
  • Corrosion Resistance: 316 Stainless Steel construction ensures longevity in chemical and outdoor environments.

Application Fields & Locations

  • HVAC Systems: By-pass lines and temperature mixing loops.
  • Chemical Processing: Switching between two raw material sources.
  • Fuel Systems: Switching fuel supply tanks for generators or engines.
  • Water Treatment: Diverting water between filtration and bypass lines.

Sample Policy

We are happy to provide product samples for customers to evaluate quality or conduct testing. The process typically begins with a quotation based on the customer’s specifications.

If the pricing is acceptable, we can offer samples either free of charge or at a cost depending on the product type and availability.
Shipping fees are borne by the customer.

Order Process

After confirming the product requirements and other details with the customer, we will issue a Sales Confirmation for approval. Once confirmed, the customer is required to pay a 30% deposit to proceed with production.

When mass production is completed and the goods pass inspection, the customer must pay the remaining 70% balance before shipment is arranged.

Related Products

FAQ

Please provide a detailed inquiry sheet including product specifications, materials, quantities, and any special requirements. We will offer a quotation based on your request.

Our quotations are typically based on FOB terms. However, we can also offer CFR, CIF, or other Incoterms upon request.

We operate on a made-to-order basis and do not hold stock.
Our standard MOQ is USD 15,000. Depending on the order composition, we may offer flexibility in certain cases.

By T/T – 30% down payment upon order confirmation, and 70% balance before shipment.

Our general lead time ranges from 30 to 45 days, depending on the order complexity and production schedule.
For more complex orders or during peak seasons, it may extend to 60–90 days.
