Product Name

3-Way Pneumatic Ball Valve

Category

Product Summary

Automated Multi-Port Flow Management for Complex Systems.

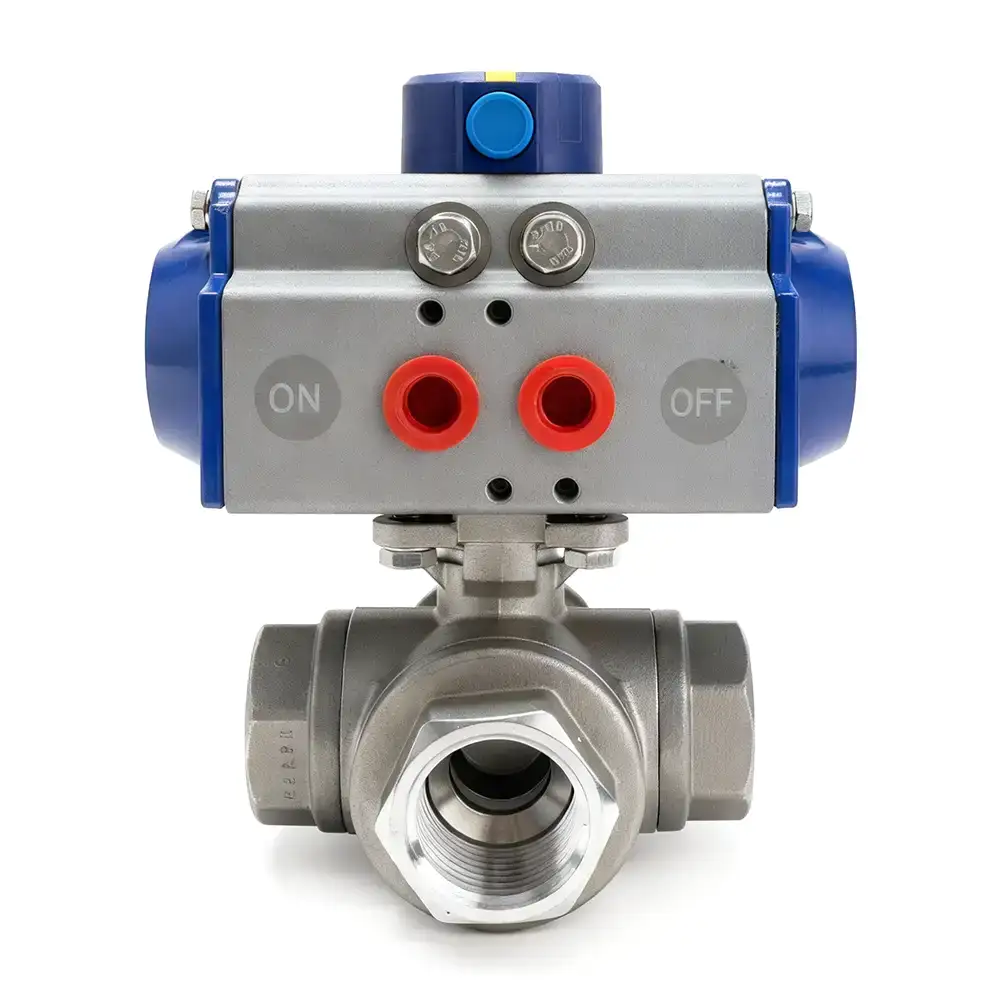

The 3-Way Pneumatic Ball Valve is the ultimate solution for automating the diversion or mixing of fluids. By combining our robust 3-way valve body (L-Port or T-Port) with a high-response Aluminum Alloy Pneumatic Actuator, this unit allows operators to remotely switch flow directions or mix media streams instantly, eliminating the need for manual intervention in complex piping networks.

Product Description

This assembly automates the routing of fluids in your system.

  • L-Port Configuration: Ideal for diverting flow from a common inlet to one of two distinct outlets (e.g., switching between two storage tanks).
  • T-Port Configuration: Offers versatile mixing capabilities or straight-through flow options.

The pneumatic actuator delivers powerful torque to rotate the ball 90 or 180 degrees, controlled seamlessly by your central PLC or remote switch. Constructed with a 316 Stainless Steel body, it ensures long-lasting performance even with corrosive media.

Key Technical Specifications

  • Body Material: ASTM 316 Stainless Steel
  • Actuator: Aluminum Alloy Cylinder (Double Acting or Spring Return)
  • Size Range: 1/4″ ~ 2″
  • Port Configuration: L-Port (Diverting) or T-Port (Mixing/Diverting)
  • Media: Oil, Water, Gas
  • Sealing: PTFE seats for chemical resistance.

Advantages & Benefits

  • Process Efficiency: Instantly switches fluid paths without manual labor, speeding up batch changes or tank switching.
  • Space Saving: Replaces multiple 2-way valves and complex automated manifolds with a single automated unit.
  • Precise Timing: Pneumatic actuation allows for synchronized switching critical in chemical blending or temperature control.
  • Durability: Designed for high-frequency cycling in industrial environments.

Application Fields & Locations

  • Chemical Batching: Automatically switching between different ingredient lines.
  • Temperature Control: Diverting fluids through heating or cooling exchangers based on sensor readings.
  • Clean-in-Place (CIP) Systems: Routing cleaning solutions through different piping loops.
  • Water Treatment: Alternating between filtration banks.

Sample Policy

We are happy to provide product samples for customers to evaluate quality or conduct testing. The process typically begins with a quotation based on the customer’s specifications.

If the pricing is acceptable, we can offer samples either free of charge or at a cost depending on the product type and availability.
Shipping fees are borne by the customer.

Order Process

After confirming the product requirements and other details with the customer, we will issue a Sales Confirmation for approval. Once confirmed, the customer is required to pay a 30% deposit to proceed with production.

When mass production is completed and the goods pass inspection, the customer must pay the remaining 70% balance before shipment is arranged.

Related Products

FAQ

Please provide a detailed inquiry sheet including product specifications, materials, quantities, and any special requirements. We will offer a quotation based on your request.

Our quotations are typically based on FOB terms. However, we can also offer CFR, CIF, or other Incoterms upon request.

We operate on a made-to-order basis and do not hold stock.
Our standard MOQ is USD 15,000. Depending on the order composition, we may offer flexibility in certain cases.

By T/T – 30% down payment upon order confirmation, and 70% balance before shipment.

Our general lead time ranges from 30 to 45 days, depending on the order complexity and production schedule.
For more complex orders or during peak seasons, it may extend to 60–90 days.
