MxF Ball Valve – Male Threaded x Female, 304 Stainless, Full Port, 1000 WOG

PDFТехнический паспорт V-2D-MF

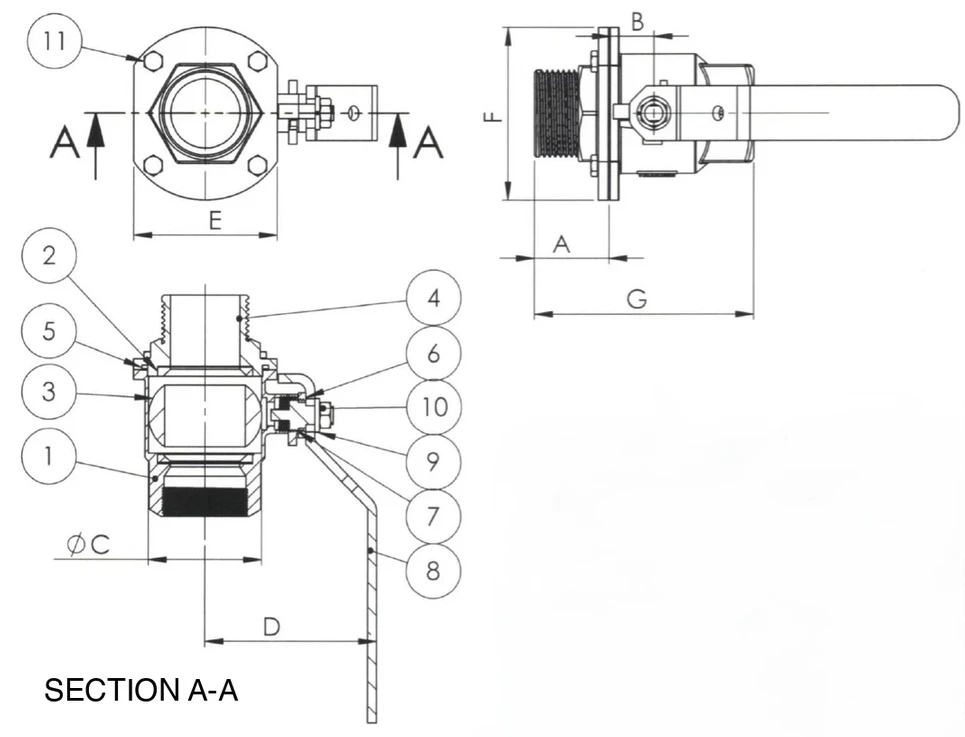

MxF ball valve, male threaded x female · A–G dimensions　Скачать PDF ↓

This MxF ball valve has one male threaded end and one female threaded end on a two-piece 304 stainless steel body. The male end screws straight into a tank outlet, pump port or machine connection; the female end takes the next pipe or hose adapter. No extra nipple, and one threaded joint fewer to leak.

Rated 1000 WOG with PTFE seats and a full-port bore, it gives manual quarter-turn shut-off on water, oil and compressed air lines. Sizes 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″ and 2″. PT threads are in stock; NPT threads and a 316 stainless body are made to order.

Основные характеристики

• Диаметр прохода: Внутренний диаметр соответствует размеру трубы, что позволяет снизить сопротивление потоку и перепад давления.
• MxF ends: one male threaded end and one female threaded end, so the valve mounts directly on equipment without an extra nipple.
• Шесть доступных размеров: 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″ и 2″.
• Варианты материалов: 304 stainless steel is in stock; 316 is made to order for chloride service or a higher pitting risk.
• Параметры темы: PT tapered threads are in stock; NPT threads are made to order.
• Рабочий диапазон: Номинальное давление 1000 WOG при диапазоне рабочих температур от -20 °C до +180 °C.

When to Choose an MxF Ball Valve

An MxF ball valve has an external (male) thread on one end and an internal (female) thread on the other. The male end screws directly into a tank outlet, pump housing or machine connection, while the female end accepts the next pipe or hose adapter.

This arrangement replaces a separate nipple-and-valve combination. It shortens the assembly and removes one threaded joint that could become a leak point. Choose an MxF valve when the valve mounts directly on equipment or at a hose take-off point.

Если оба конца соединяются с трубой, то используется стандартный Двухкомпонентный шаровой кран с внутренними резьбами (самец-самец) обычно подходит лучше. Вы также можете ознакомиться с нашим руководством по Типы корпусов шаровых кранов для сравнения распространенных конструкций клапанов.

Основные технические характеристики

Приложения

An MxF ball valve earns its place wherever the valve has to sit directly on a female port. Typical positions for this 304 stainless valve:

• Tank and vessel outlets: the male end screws into the tank’s female outlet, the female end takes the drain line or hose.
• Pump discharge ports: a direct isolation valve on the pump body, with no nipple between pump and valve.
• Compressor receiver drains: mounted on the receiver’s female drain port for daily condensate blow-down.
• Compressed air drop legs: point-of-use shut-off screwed into the header or manifold outlet.
• Irrigation and dosing manifolds: zone isolation on manifold outlets, with the hose or tubing adapter on the female end.
• Gauge and instrument isolation: the male end goes into the gauge port or process connection so the instrument can be serviced alone.
• Strainer and filter housings: direct connection to female housing ports on line strainers and filters.

Service media are water, oil and compressed air within the 1000 WOG rating. For general plant piping see our промышленное применение страница.

Часто задаваемые вопросы

What is an MxF ball valve?
MxF stands for male x female. One end has an external (male) thread and the other an internal (female) thread. The male end screws into a female port on a tank, pump or machine, and the female end takes the pipe, so no separate nipple is needed.

Is this a full port ball valve?
Yes. All six sizes have a full-port bore that follows the connected pipe size, which keeps flow restriction and pressure drop low.

Какие стандарты резьбы доступны?
PT tapered threads are in stock. NPT threads are made to order. Please state the required thread standard when requesting a quote.

Что означает «1000 WOG»?
Обозначение «1000 WOG» означает, что клапан рассчитан на работу при давлении 1 000 psi с водой, нефтью или газом при комнатной температуре. Ознакомьтесь с нашей Руководство по номинальному давлению WOG прежде чем выбрать клапан для конкретных условий эксплуатации.

Каков диапазон рабочих температур?
Заявленный диапазон рабочих температур составляет от -20 °C до +180 °C, при этом максимальная температура ограничивается седлами из ПТФЭ. Фактическое допустимое давление может изменяться в зависимости от температуры и условий эксплуатации.

Есть ли в наличии нержавеющая сталь марки 316?
304 is the standard stocked material. A 316 body is made to order for applications involving chlorides, seawater, brine or a higher risk of pitting corrosion.
