Product Name

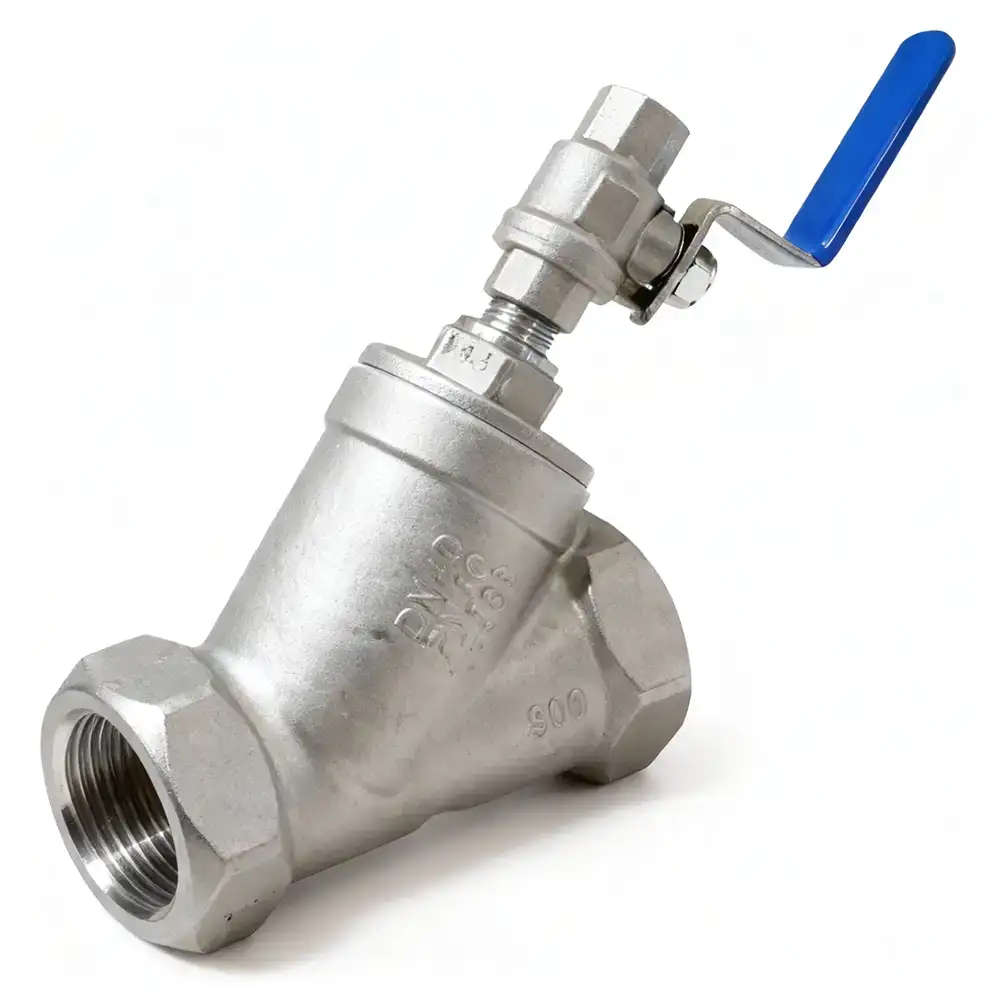

Y-Type Blowdown Valve (20/60/100 Mesh), 800 WOG
Product Summary
Filtration with Rapid Cleaning Capability.
The Y-Type Blowdown Valve combines the filtration capability of a standard Y-strainer with the functionality of a blow-off mechanism. Rated for 800 WOG and constructed from 316 Stainless Steel, this unit is designed for systems where frequent cleaning of the filter screen is required without shutting down the entire system flow.
Product Description
This product functions primarily as a strainer/filter but is engineered for “Blowdown” operations. Typically utilized in steam or dirty fluid applications, it allows the accumulated sludge or debris to be flushed out through a discharge port (often fitted with a secondary valve) while the system remains under pressure. This significantly reduces maintenance downtime compared to standard strainers that require disassembly for cleaning.
Key Technical Specifications
- Body Material: ASTM 316 Stainless Steel
- Pressure Rating: 800 WOG
- Size Range: 1/4″ ~ 3″
- Filtration: 20 / 60 / 100 Mesh screens
- Function: Filtration + Sludge/Sediment Blowdown
Advantages & Benefits
- Minimizes Downtime: Allows for cleaning (“blowing down”) of the strainer screen while the system is live.
- Efficient Sludge Removal: Specifically effective in steam boilers and lines with heavy sediment loads.
- High Durability: 316SS construction ensures resistance to heat and corrosion.
- Reduced Labor: Eliminates the need to manually unscrew caps for every cleaning cycle.
Application Fields & Locations
- Boiler Systems: Bottom blowdown to remove sludge and sediment.
- Industrial Cooling Water: Removing settled solids from cooling towers.
- Process Lines: Lines carrying fluids with high particulate content requiring frequent flushing.
